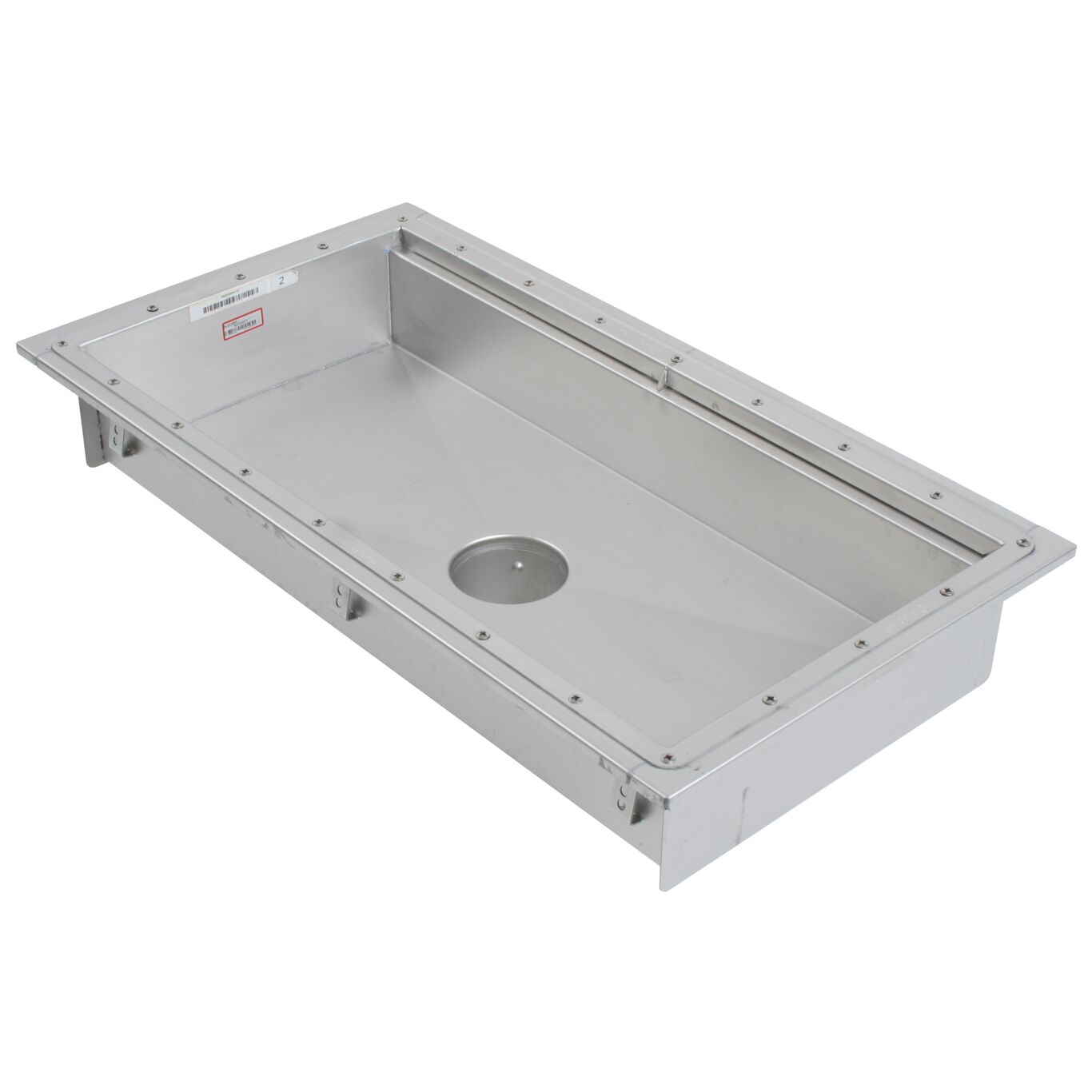

KITCHEN CHANNEL 500x1000 - (662GH010-15)
×
![]()
Part Of the Series: Kitchen channel-Vinyl
Type no.: 662GH010-15
EAN no.: 5705499126563
Size: 500x1000
KITCHEN CHANNEL 20 x 40
-Floor: vinyl
-Outlet: Ø4 inch, vertical
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Industrial |
| Floor | Vinyl |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 211 |
| Outlet dia. (mm) | 110 |
| Outlet Diameter (Inch) | 4 |
| Outlet Direction | Vertical |
| Shape | Rectangular |
| Size (mm) | 500x1000 |
| Size of Frame (Inch) | 20 x 40 |
| Weight (kg) | 29.36 |
| Weight (lbs) | 64.73 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
