LOWER PART - (760.002.110)
×
![]()
Part Of the Series: Lower part-160
Type no.: 760.002.110
EAN no.: 5705499109283
NRF no.: 3396325
LVI no.: 3303759

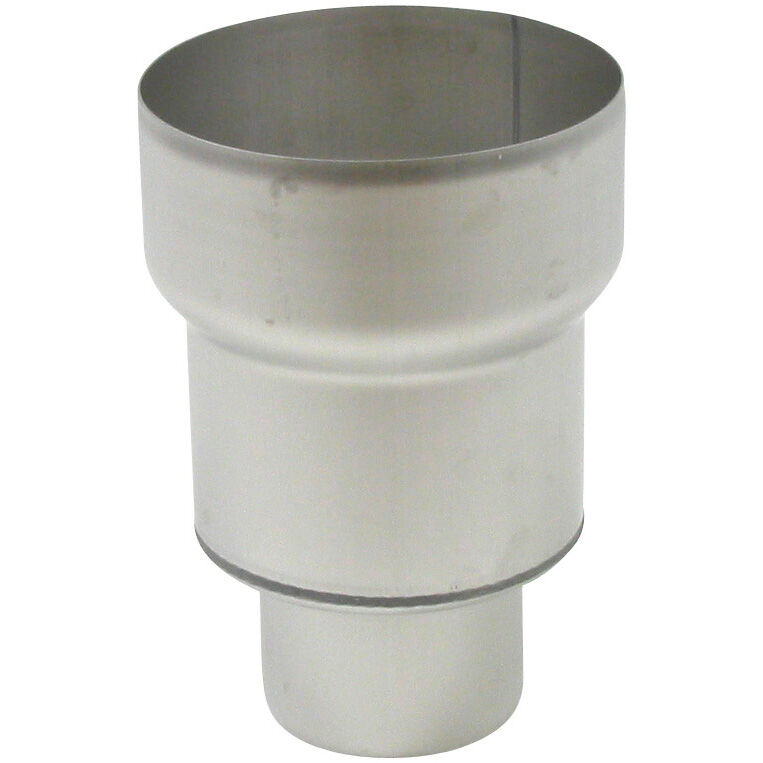

LOWER PART
-No membrane flange
-Outlet: Ø110mm, vertical
-Stainless steel: AISI304/EN1.4301
Part of USA order number: BFD-214, BFD-214-R
| Product Specification | |
|---|---|
| Field of Application | Industrial |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Membrane Type | No Membrane |
| Minimum Height (mm) | 278 |
| Outlet dia. (mm) | 110 |
| Outlet Diameter (Inch) | 4 |
| Outlet Direction | Vertical |
| Weight (kg) | 1.19 |
| Weight (lbs) | 2.62 |
-
Approval Information
For approval information, please refer to the below approval certificates.
