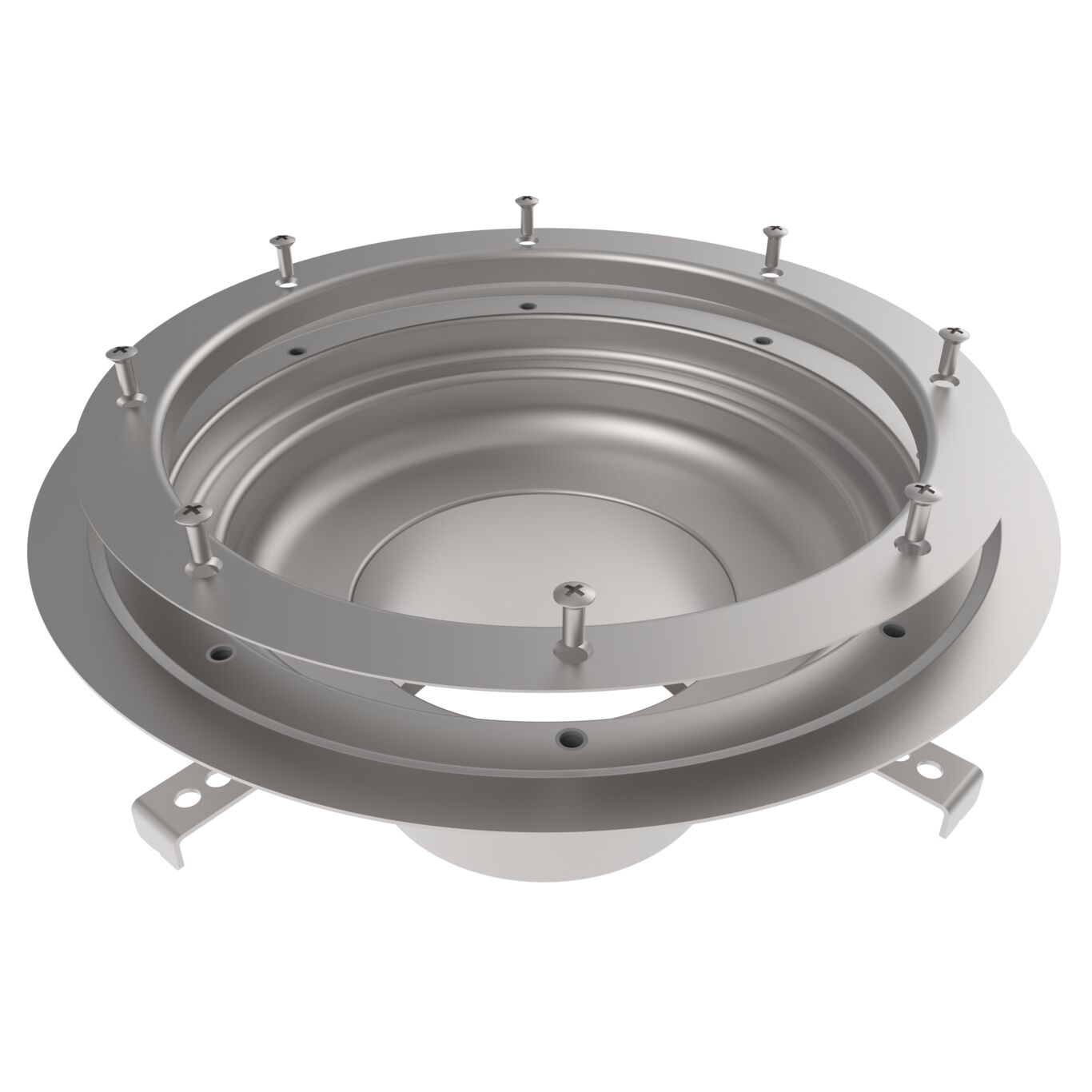

UPPER PART - (710.603.000)

Part Of the Series: Upper part-Vinyl-332

Type no.: 710.603.000

EAN no.: 5705499108460

RSK no.: 7123993

NRF no.: 3396435

LVI no.: 3303819

Size: Ø332


Download CAD Collections

2d DWG files

3d STP files



Download MasterSpec Documents

MasterSpec

Product Specification
Field of Application Industrial
Floor Vinyl
Material AISI 304
Material (EN) EN 1.4301
Minimum Height (mm) 156
Number of Screw Holes 0
Outlet dia. (mm) 160
Outlet Diameter (Inch) 6
Shape Round
Size (mm) Ø332
Size of Frame (Inch) Ø13-1/8
Weight (kg) 5.43
Weight (lbs) 11.97
