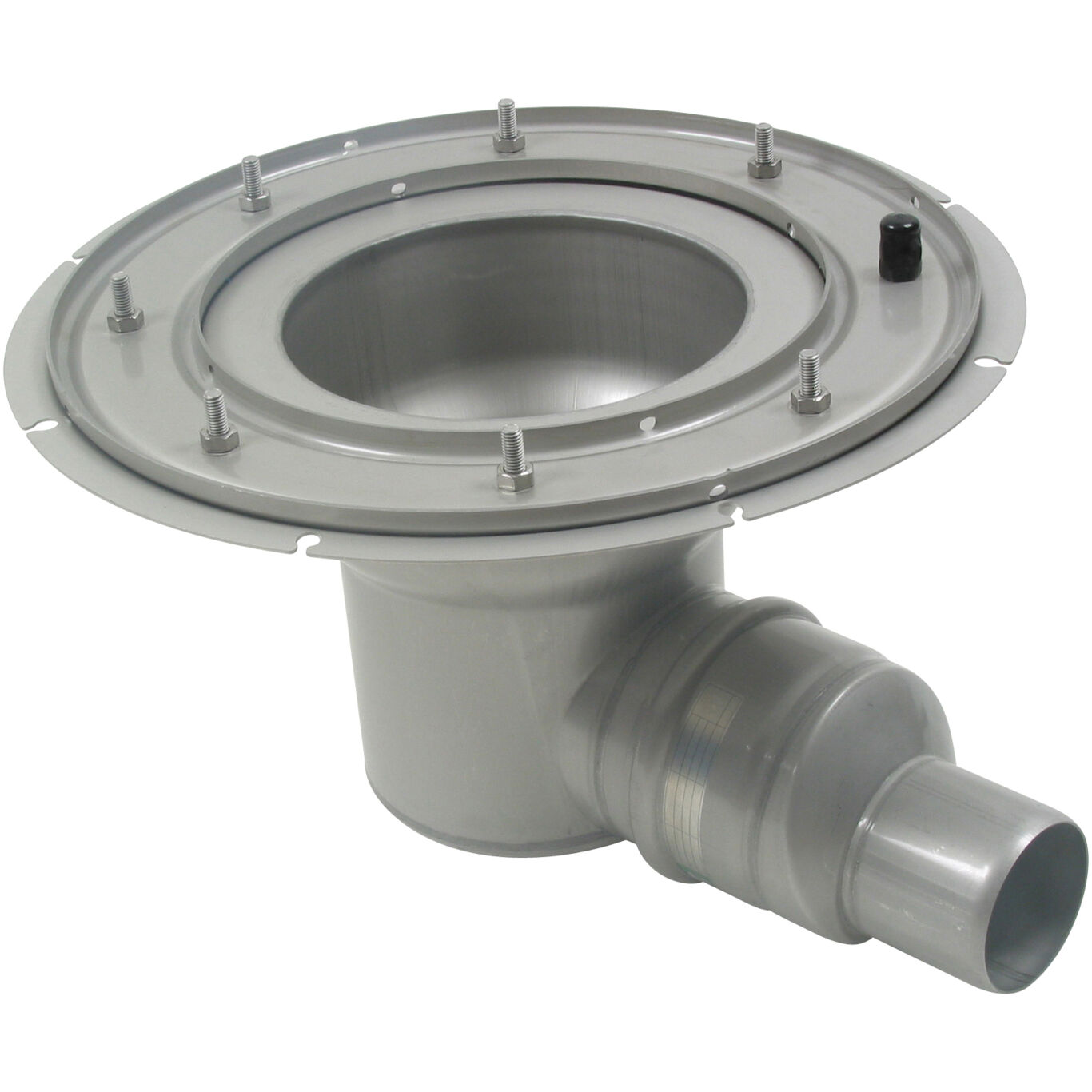

LOWER PART - (771.002.075)

Part Of the Series: Lower part-160

Type no.: 771.002.075

EAN no.: 5705499111224

LVI no.: 3303781


Download CAD Collections

2d DWG files

3d STP files



Download MasterSpec Documents

MasterSpec

Product Specification
Field of Application Industrial
Material AISI 304
Material (EN) EN 1.4301
Membrane Type Sheet Membrane
Minimum Height (mm) 218
Outlet dia. (mm) 75
Outlet Diameter (Inch) 3
Outlet Direction Horizontal
Weight (kg) 5.43
Weight (lbs) 11.97
