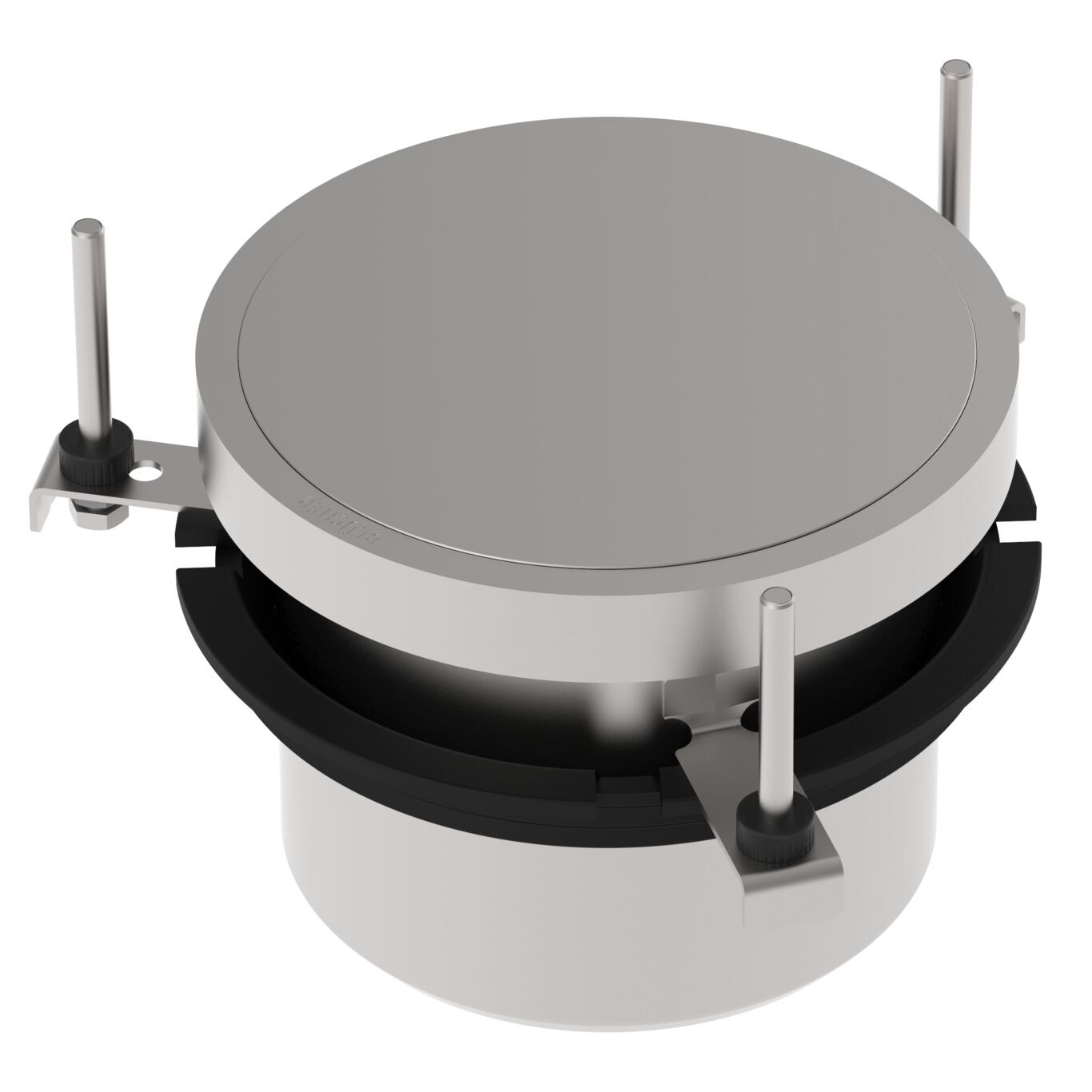

GASTIGHT UPPER PART - (774.552.000 S)

Part Of the Series: Upper part-Gastight

Type no.: 774.552.000 S

EAN no.: 5705499115826

LVI no.: 3304007

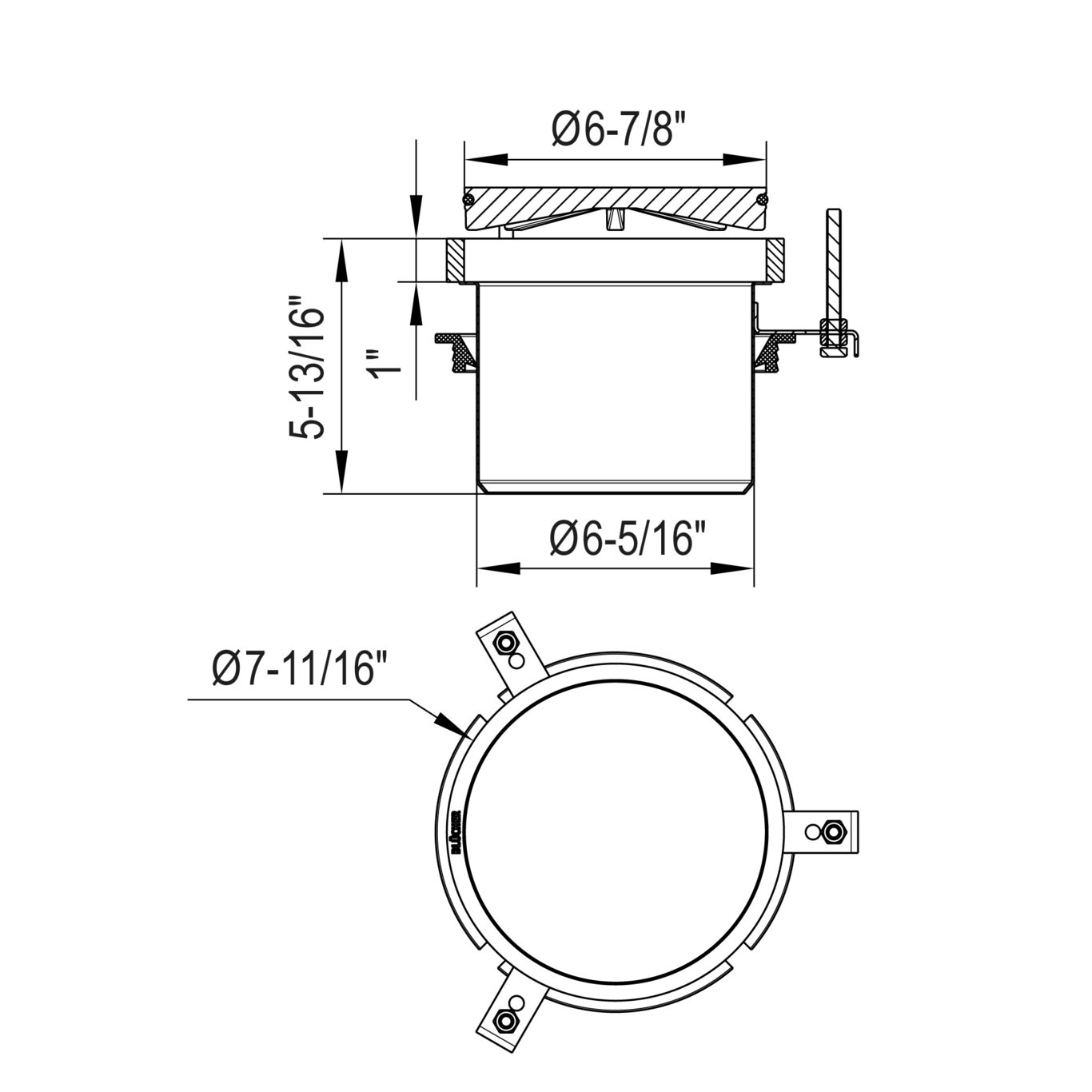

Size: Ø195


Download CAD Collections

2d DWG files

3d STP files



Download MasterSpec Documents

MasterSpec

Product Specification
Field of Application Industrial
Floor Resin
Load Class EN1253 N250
Load class EN1253(kg) N250 (20000)
Load class EN1253(lbs) N250 (44092)
Material AISI 316L
Material (EN) EN 1.4404
Number of Screw Holes 3
Outlet dia. (mm) 160
Outlet Diameter (Inch) 6
Shape Round
Size (mm) Ø195
Size of Frame (Inch) Ø7-5/8
Weight (kg) 4.63
Weight (lbs) 10.21
