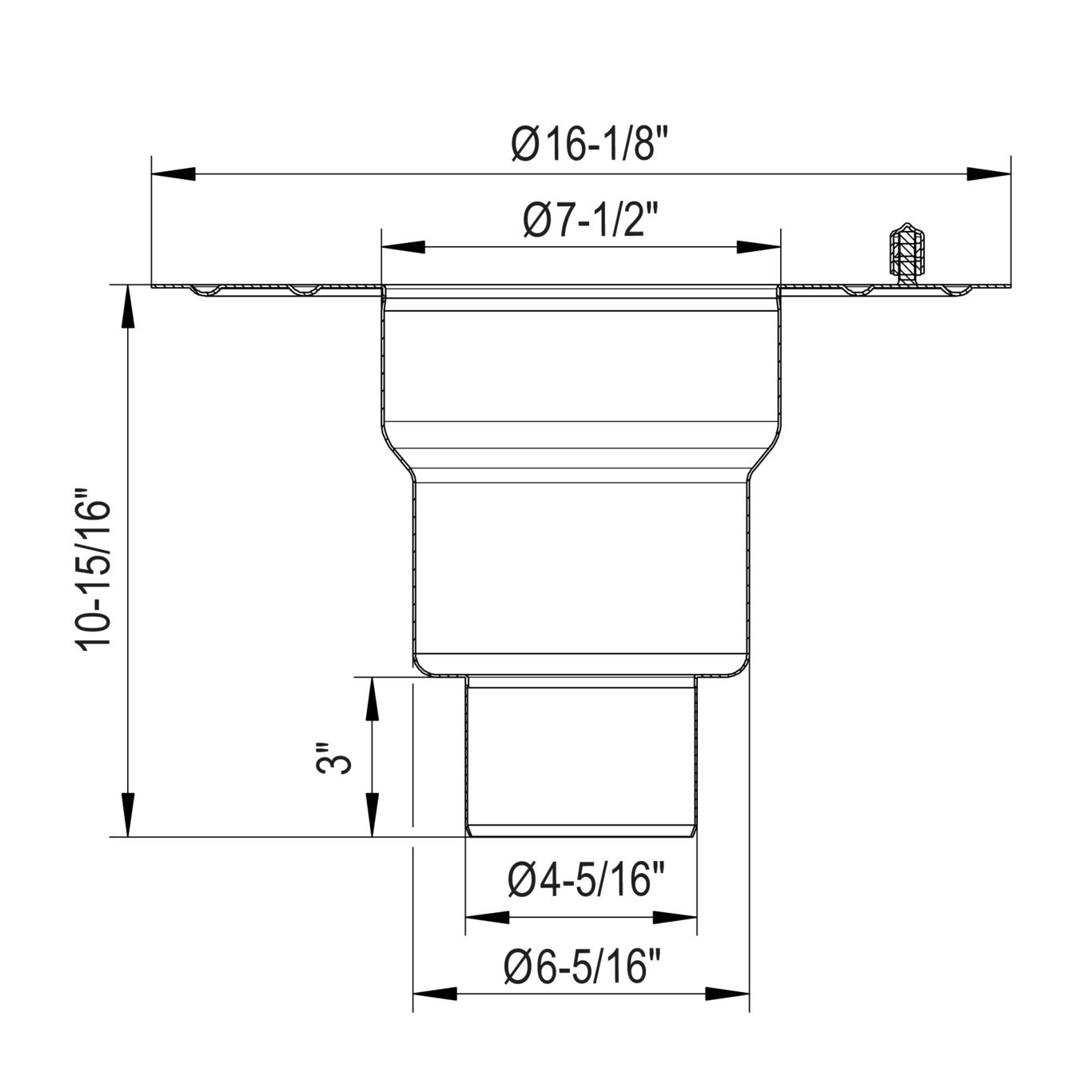

LOWER PART - (774.002.110 S)

Part Of the Series: Lower part-160

Type no.: 774.002.110 S

EAN no.: 5705499111934

VVS no.: 153008146

LVI no.: 3303792


Download CAD Collections

2d DWG files

3d STP files



Download MasterSpec Documents

MasterSpec

Product Specification
Field of Application Industrial
Material AISI 316L
Material (EN) EN 1.4404
Membrane Type Liquid Membrane
Minimum Height (mm) 278
Outlet dia. (mm) 110
Outlet Diameter (Inch) 4
Outlet Direction Vertical
Weight (kg) 2.91
Weight (lbs) 6.42
