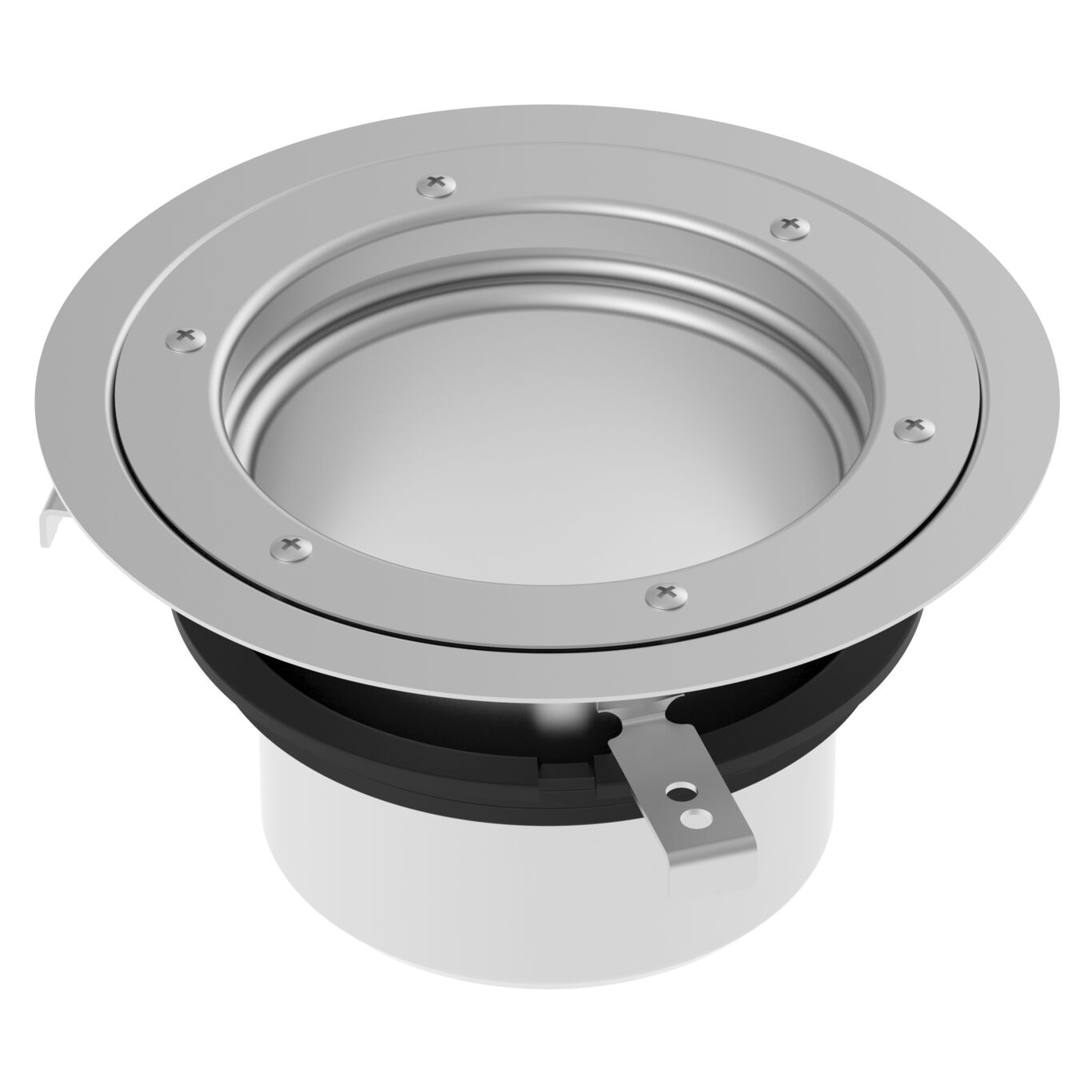

UPPER PART - (774.602.000 S)

Part Of the Series: Upper part-Vinyl-232

Type no.: 774.602.000 S

EAN no.: 5705499112504

VVS no.: 153038146

LVI no.: 3303847

Size: Ø232


Download CAD Collections

2d DWG files

3d STP files



Download MasterSpec Documents

MasterSpec

Product Specification
Field of Application Industrial
Floor Vinyl
Material AISI 316L
Material (EN) EN 1.4404

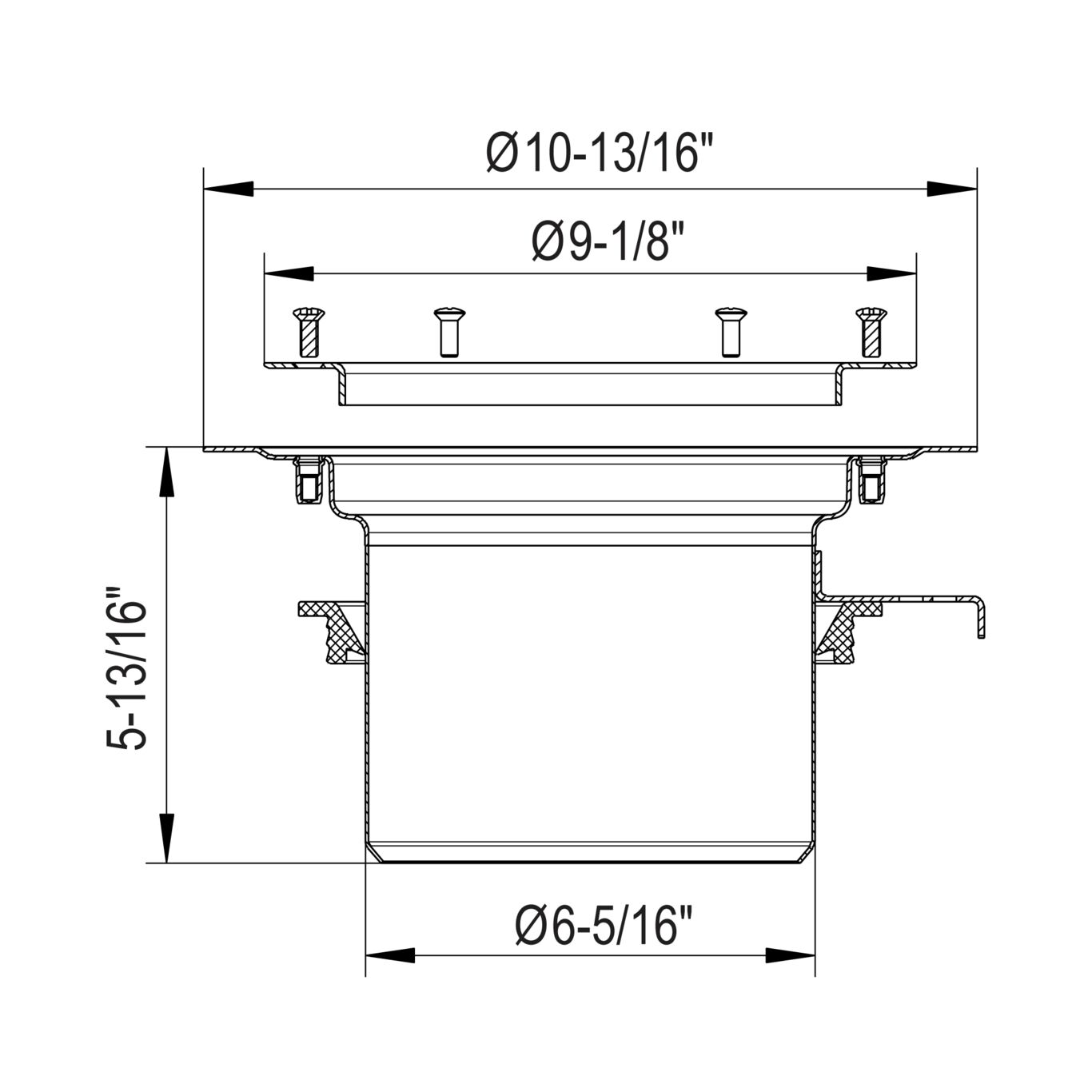

Minimum Height (mm) 148
Number of Screw Holes 0
Outlet dia. (mm) 160
Outlet Diameter (Inch) 6
Shape Round
Size (mm) Ø232
Size of Frame (Inch) Ø9-1/8
Weight (kg) 2.02
Weight (lbs) 4.45
