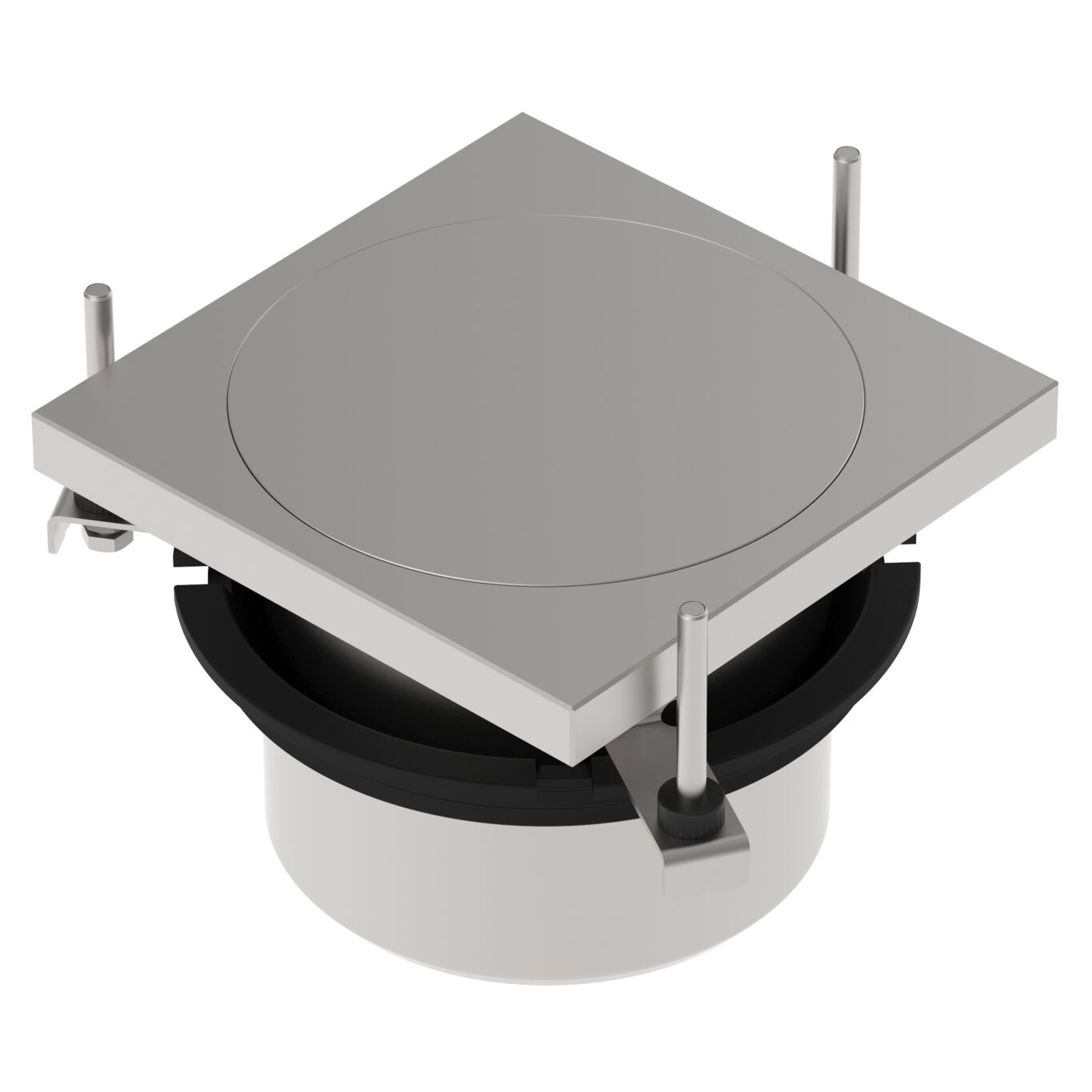

GASTIGHT UPPER PART - (774.452.000 S)

Part Of the Series: Upper part-Gastight

Type no.: 774.452.000 S

EAN no.: 5705499115789

LVI no.: 3304002

Size: 200x200


Download CAD Collections

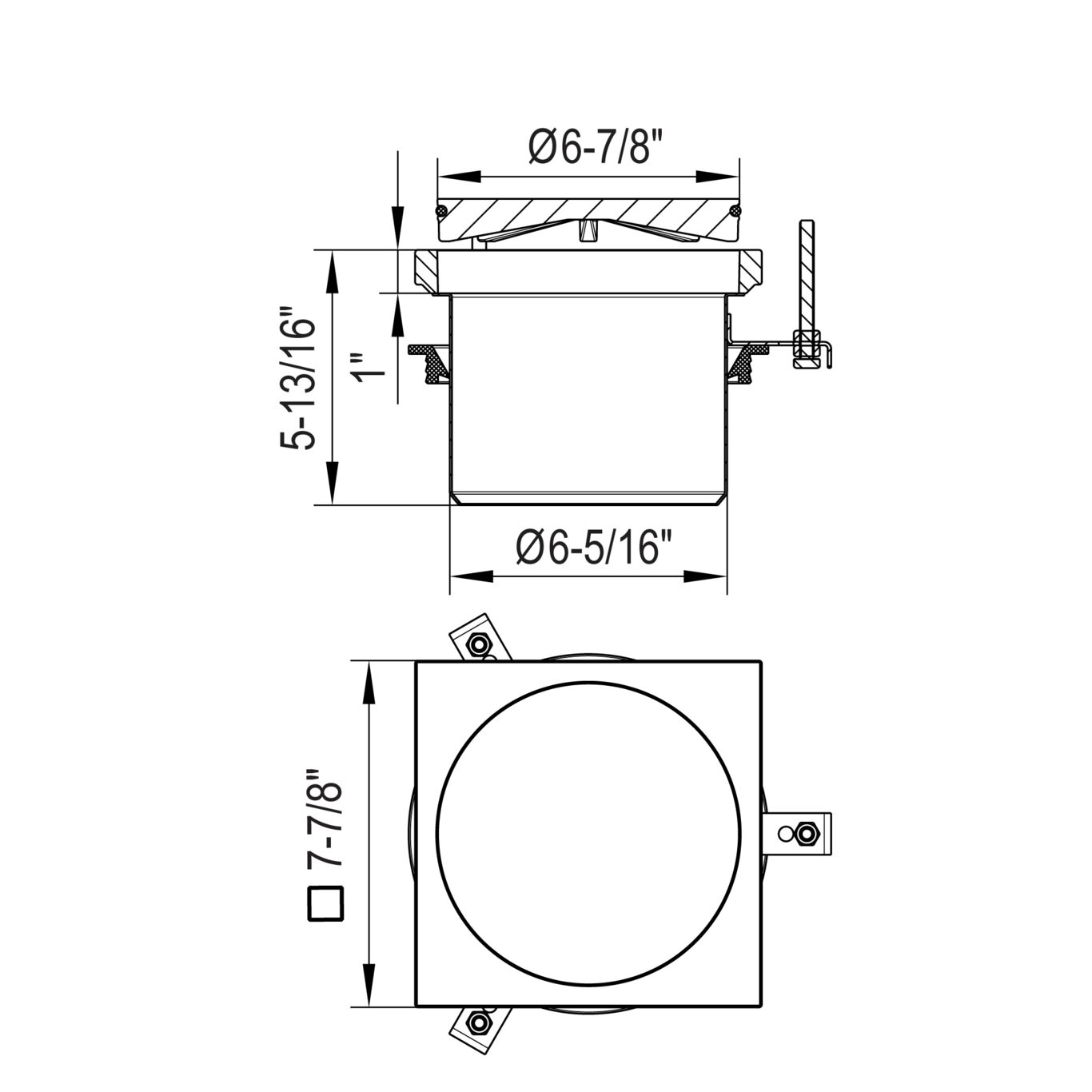

2d DWG files

3d STP files



Download MasterSpec Documents

MasterSpec

Product Specification
Field of Application Industrial
Floor Concrete / Tiled
Load Class EN1253 N250
Load class EN1253(kg) N250 (20000)
Load class EN1253(lbs) N250 (44092)
Material AISI 316L
Material (EN) EN 1.4404
Number of Screw Holes 3
Outlet dia. (mm) 160
Outlet Diameter (Inch) 6
Shape Square
Size (mm) 200x200
Size of Frame (Inch) 7-7/8 x 7-7/8
Weight (kg) 6.18
Weight (lbs) 13.62
