UPPER PART - (710.503.000 S)
Part Of the Series: Upper part-No membrane-305
Type no.: 710.503.000 S
EAN no.: 5705499108354
VVS no.: 153018348
LVI no.: 3303816

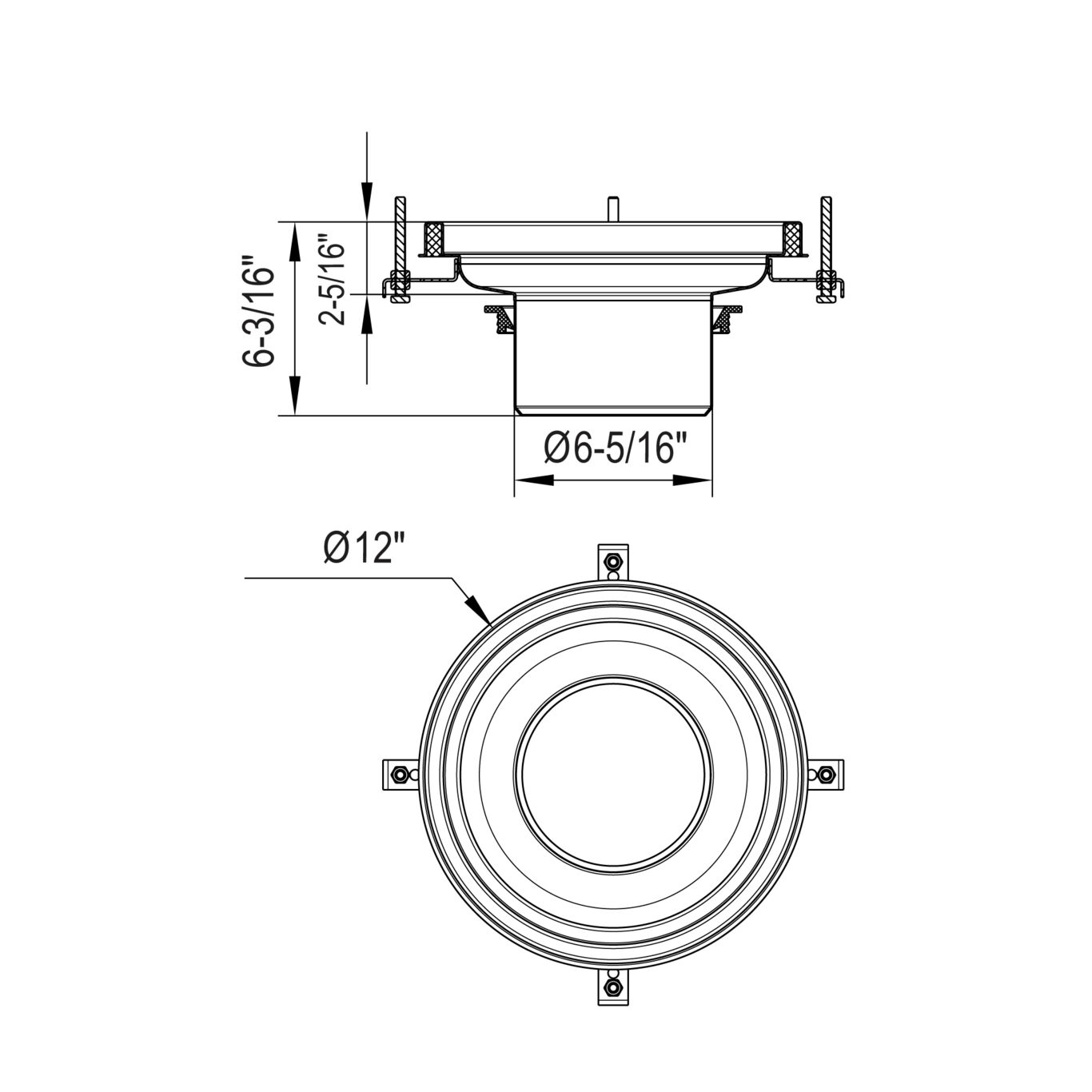

Size: Ø305
UPPER PART
-With supporting ring for water trap
-Floor: resin
-Frame: Ø12 inch
-Stainless steel: AISI316L/EN1.4404
Product Specification | |
---|---|
Field of Application | Industrial |
Floor | Resin |
Material | AISI 316L |
Material (EN) | EN 1.4404 |
Minimum Height (mm) | 157 |
Number of Screw Holes | 0 |
Outlet dia. (mm) | 160 |
Outlet Diameter (Inch) | 6 |
Shape | Round |
Size (mm) | Ø305 |
Size of Frame (Inch) | Ø12 |
Weight (kg) | 3.48 |
Weight (lbs) | 7.67 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
