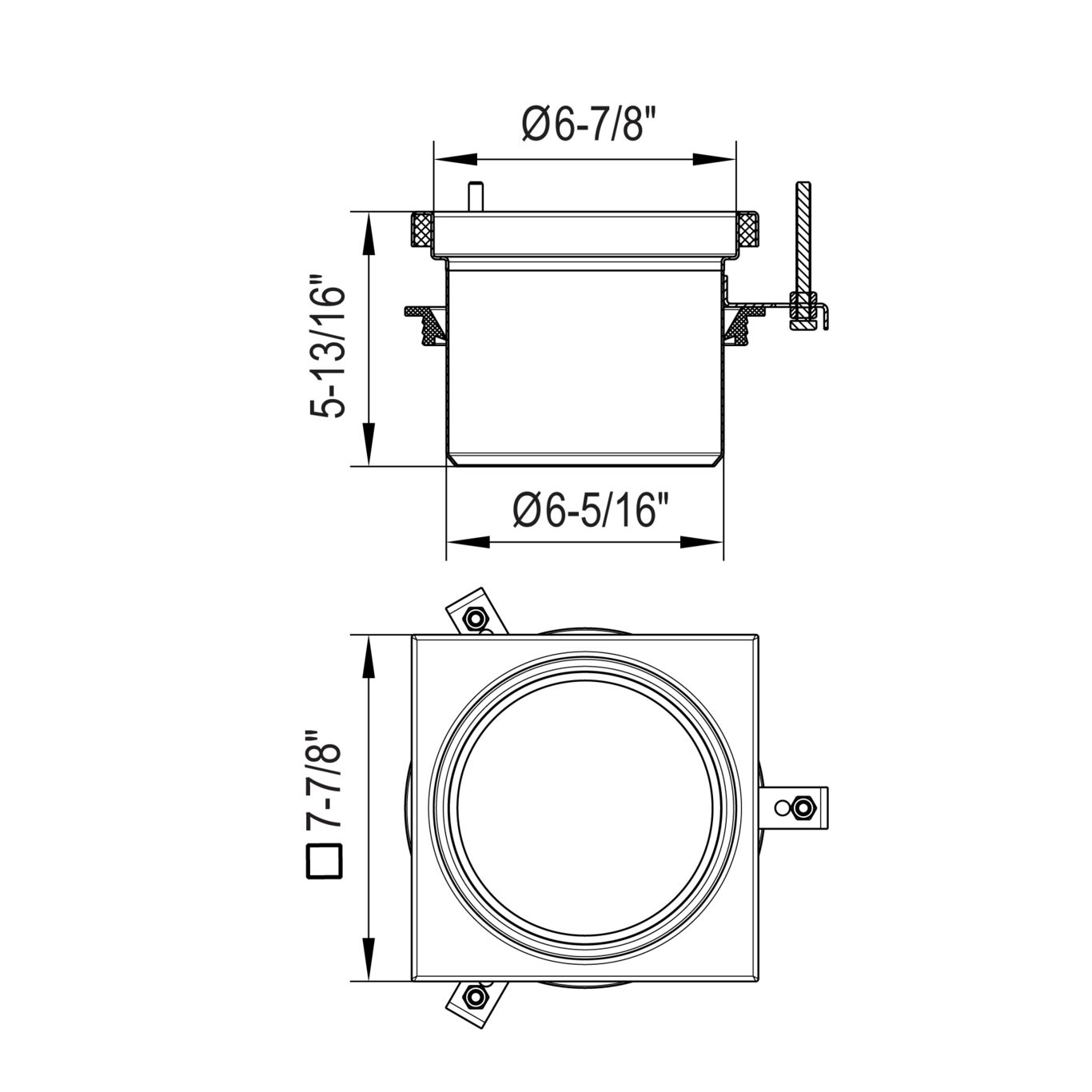

UPPER PART - (774.702.000)

Part Of the Series: Upper part-No membrane-200

Type no.: 774.702.000

EAN no.: 5705499138702

VVS no.: 153018519

Size: 200x200


Download CAD Collections

2d DWG files

3d STP files



Download MasterSpec Documents

MasterSpec

Product Specification
Field of Application Industrial
Floor Concrete / Tiled
Material AISI 304
Material (EN) EN 1.4301
Number of Screw Holes 0
Outlet dia. (mm) 160
Outlet Diameter (Inch) 6
Shape Square
Size (mm) 200x200
Size of Frame (Inch) 7-7/8 x 7-7/8
Weight (kg) 3.71
Weight (lbs) 8.18
