LOWER PART - (769.002.075)
Part Of the Series: Lower part-160
Type no.: 769.002.075
EAN no.: 5705499110869
NRF no.: 3396331
LVI no.: 3303773
LOWER PART
-Liquid membrane flange
-Outlet: Ø75mm, horizontal
-Stainless steel: AISI304/EN1.4301

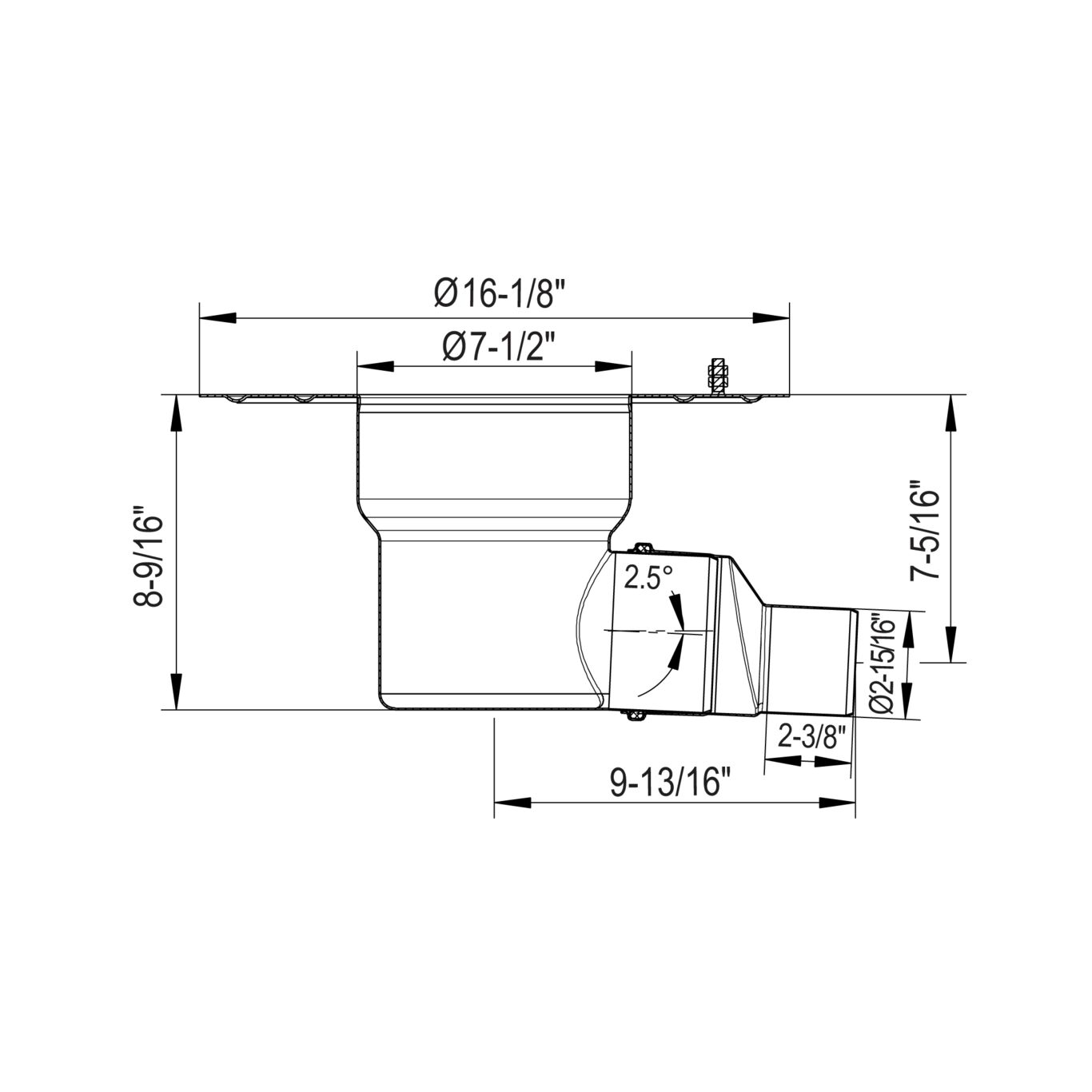

Product Specification | |
---|---|
Field of Application | Industrial |
Material | AISI 304 |
Material (EN) | EN 1.4301 |
Membrane Type | Liquid Membrane |
Minimum Height (mm) | 218 |
Outlet dia. (mm) | 75 |
Outlet Diameter (Inch) | 3 |
Outlet Direction | Horizontal |
Weight (kg) | 3.92 |
Weight (lbs) | 8.64 |
-
Approval Information
For approval information, please refer to the below approval certificates.
