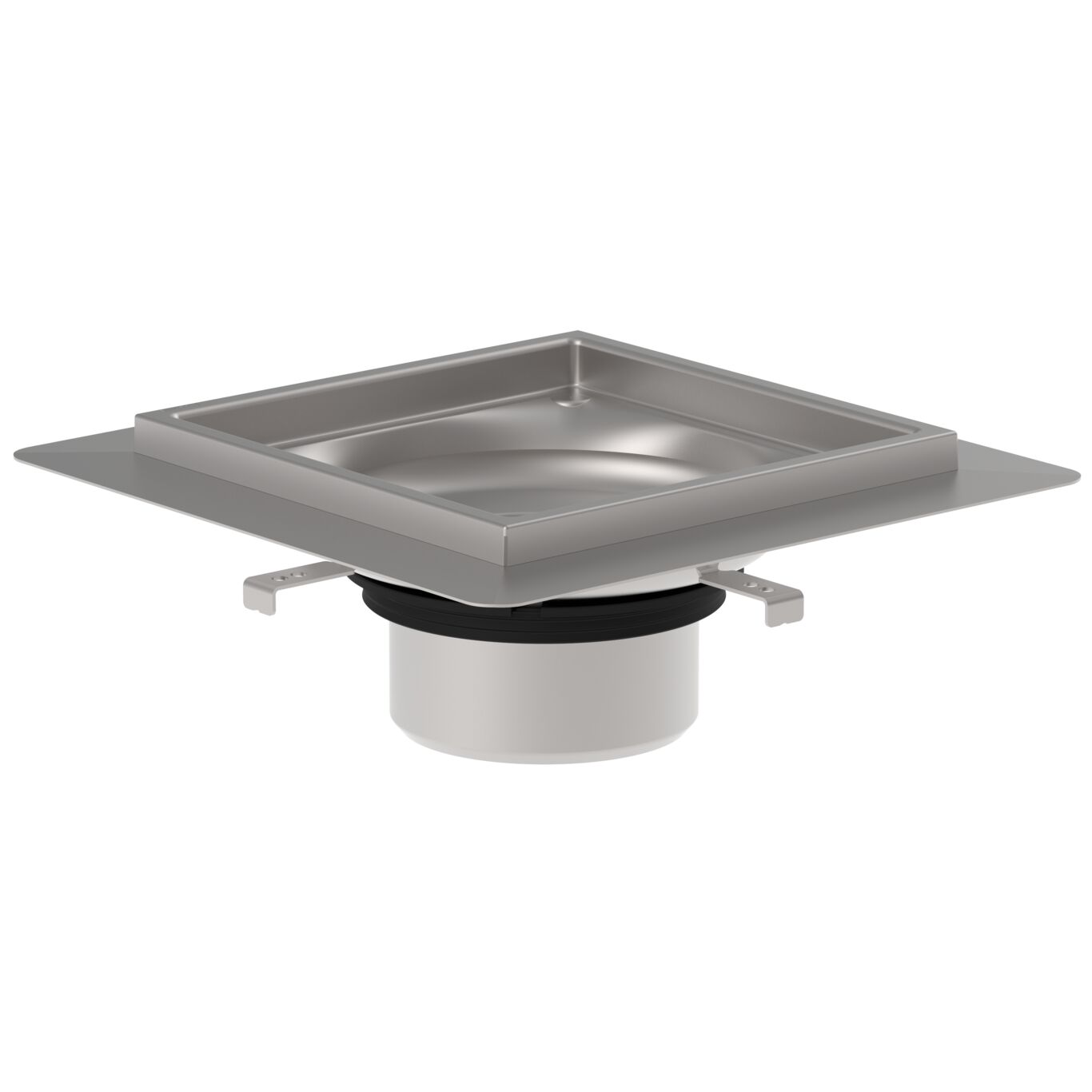

UPPER PART - (710.423.000)

Part Of the Series: Upper part-Liquid membrane-300

Type no.: 710.423.000

EAN no.: 5705499138825

VVS no.: 153018529

RSK no.: 7123991

NRF no.: 3396436

Size: 300x300


Download CAD Collections

2d DWG files

3d STP files



Download MasterSpec Documents

MasterSpec

Product Specification
Field of Application Industrial
Floor Concrete / Tiled
Material AISI 304
Material (EN) EN 1.4301
Number of Screw Holes 0
Outlet dia. (mm) 160
Outlet Diameter (Inch) 6
Shape Square
Size (mm) 300x300
Size of Frame (Inch) 11-3/4 x 11-3/4
Weight (kg) 4,42
Weight (lbs) 9.74
