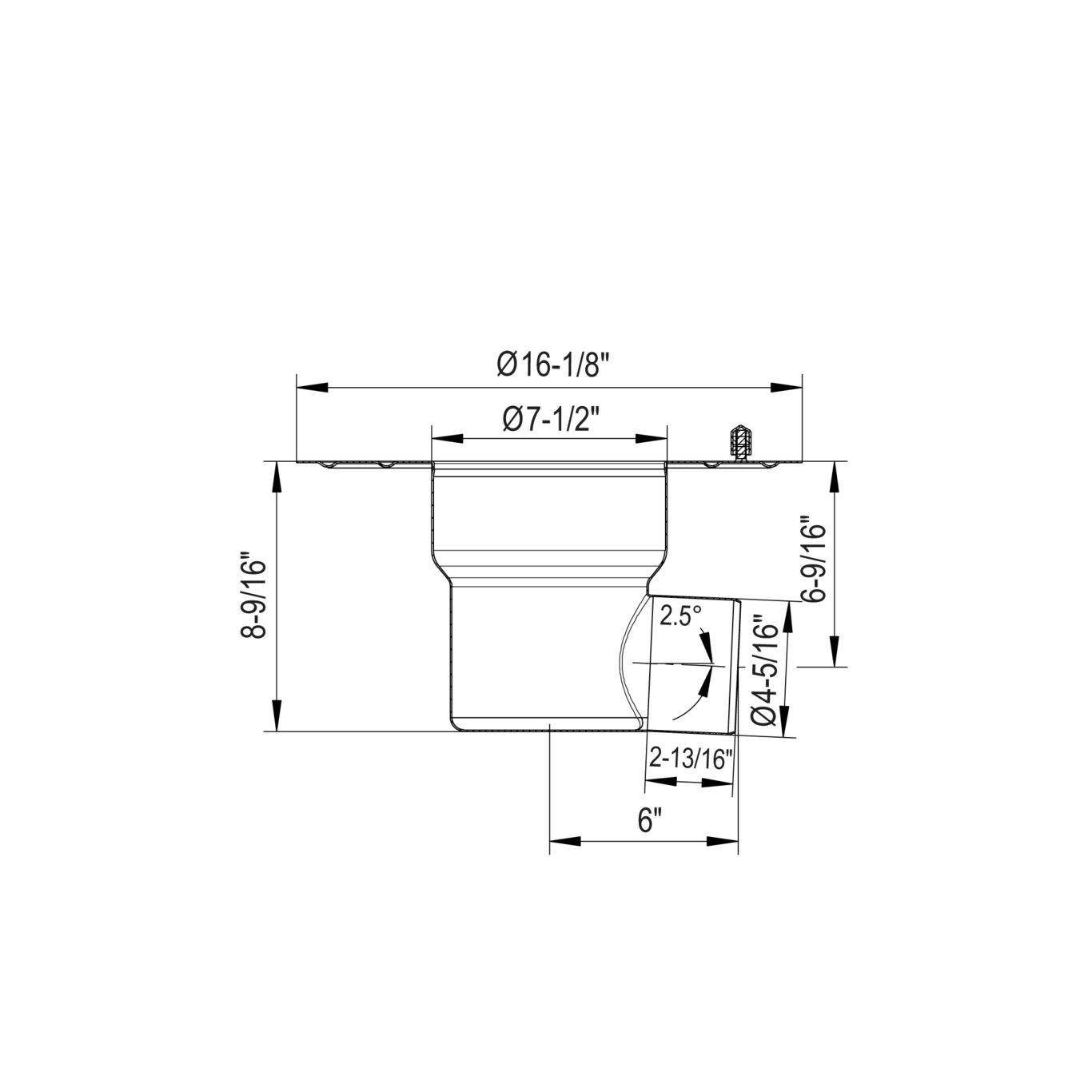

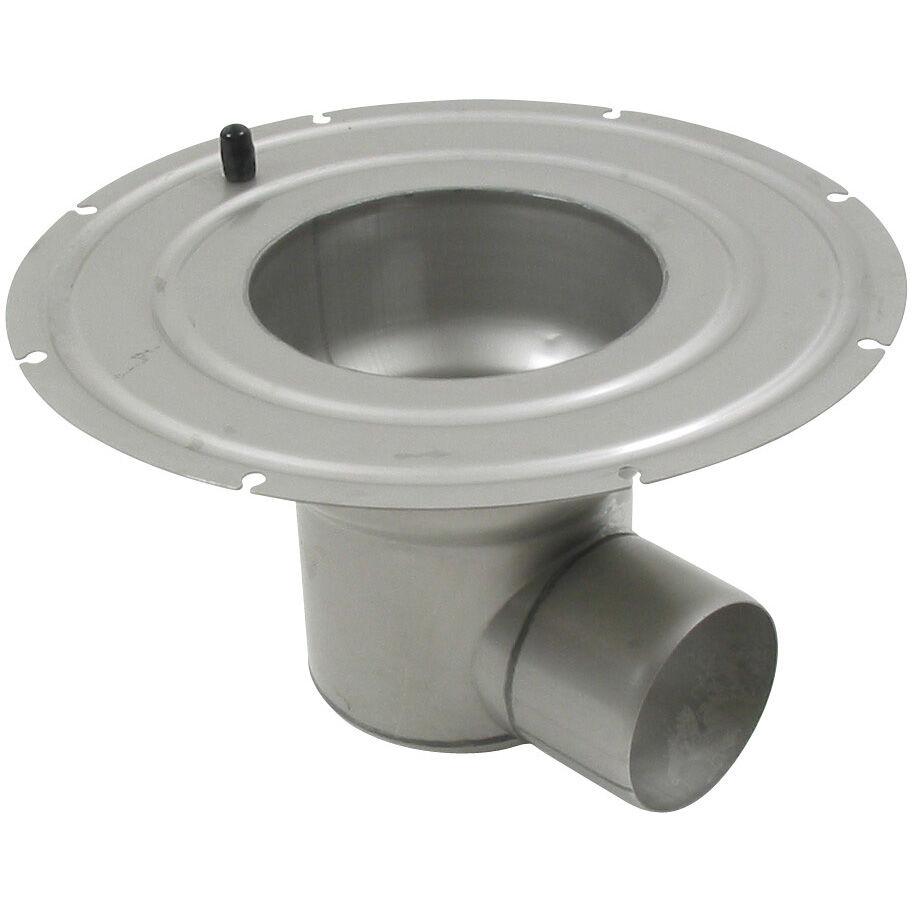

LOWER PART - (769.002.110)

Part Of the Series: Lower part-160

Type no.: 769.002.110

EAN no.: 5705499110883

NRF no.: 3396332

LVI no.: 3303775


Download CAD Collections

2d DWG files

3d STP files



Download MasterSpec Documents

MasterSpec

Product Specification
Field of Application Industrial
Material AISI 304
Material (EN) EN 1.4301
Membrane Type Liquid Membrane
Minimum Height (mm) 218
Outlet dia. (mm) 110
Outlet Diameter (Inch) 4
Outlet Direction Horizontal
Weight (kg) 3.37
Weight (lbs) 7.43
