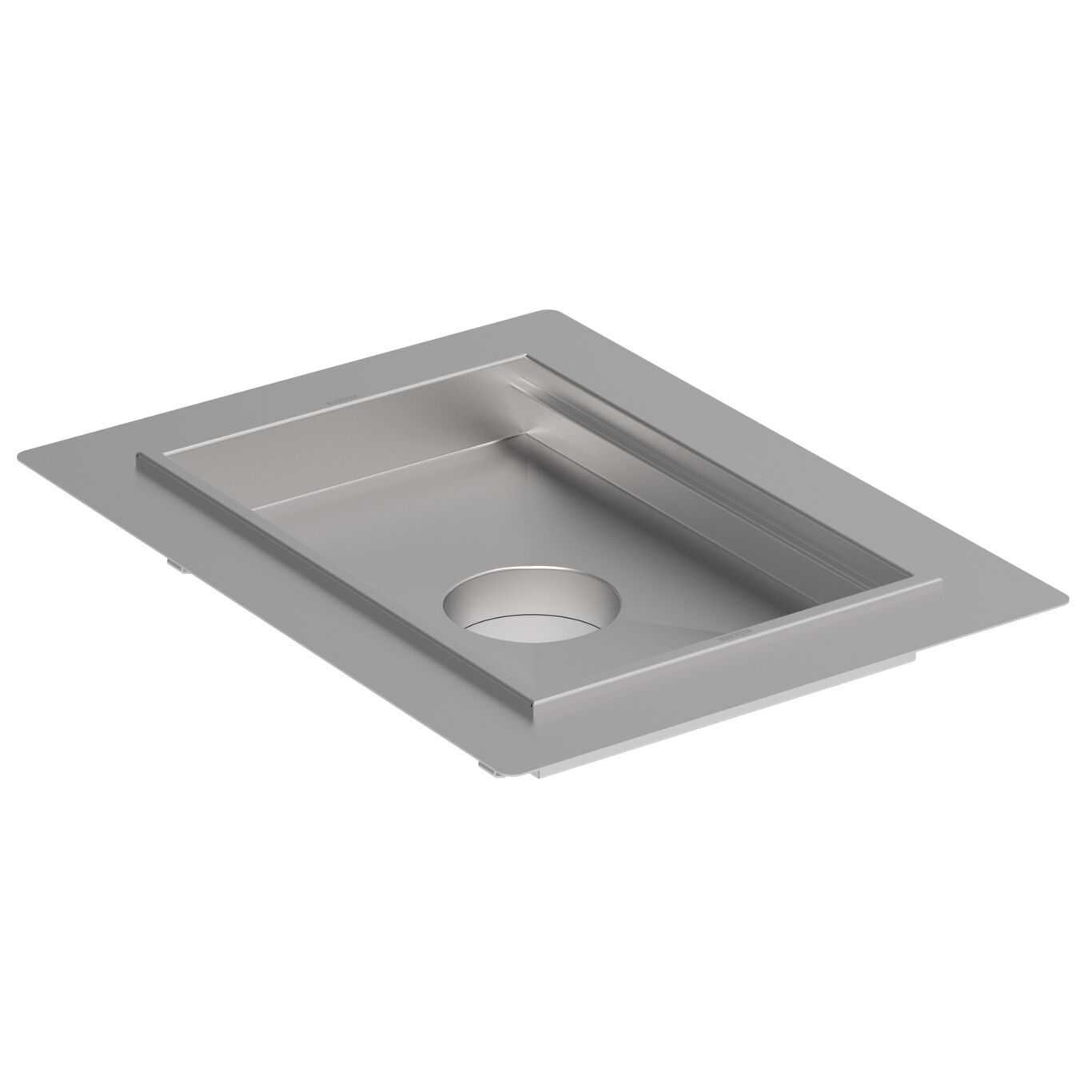

KITCHEN CHANNEL 400x600 - (668FK006-11)

Part Of the Series: Kitchen channel-Liquid membrane

Type no.: 668FK006-11

EAN no.: 5705499135183

RSK no.: 7121819

LVI no.: 3304930

Size: 400x600

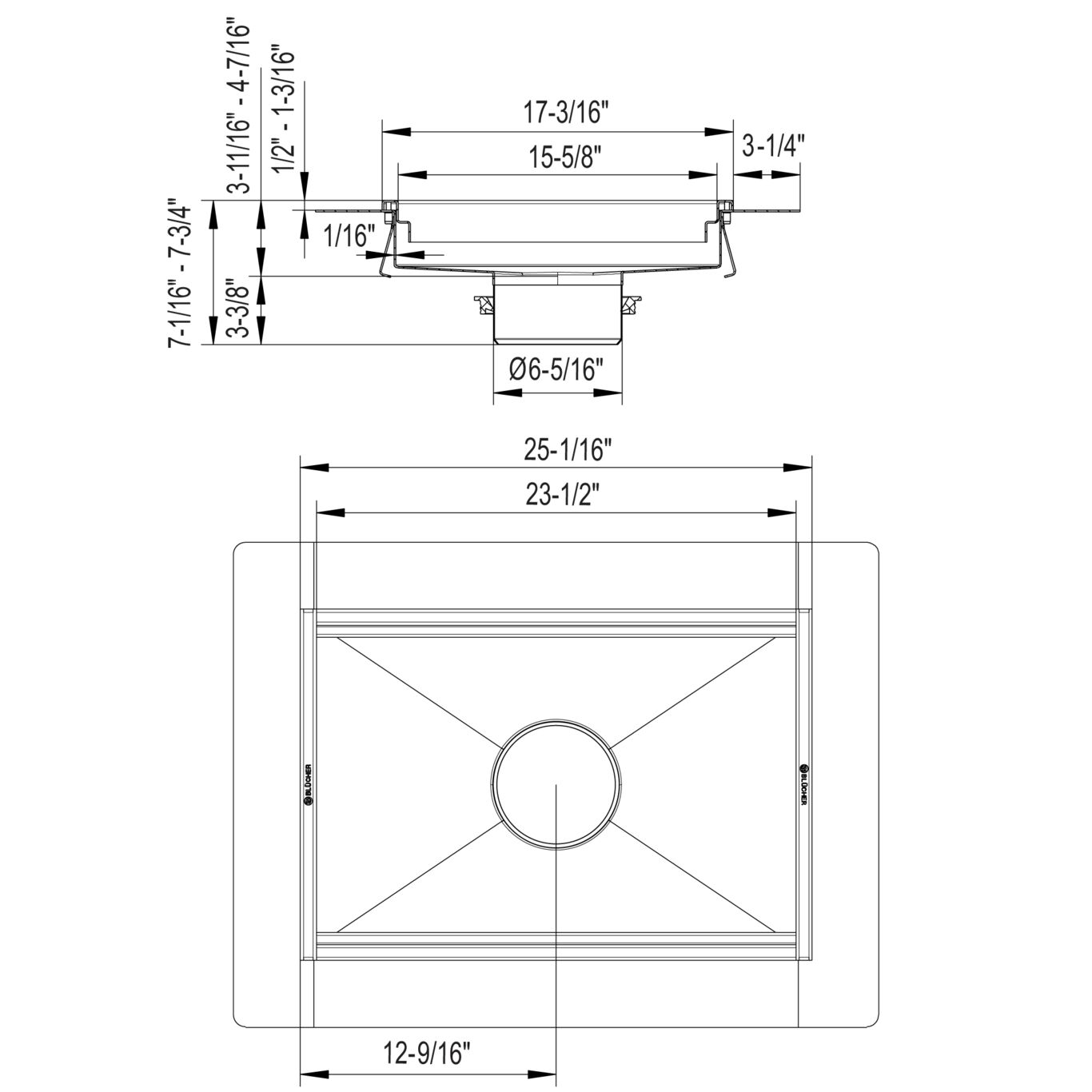

Download CAD Collections

2d DWG files

3d STP files



Download MasterSpec Documents

MasterSpec

Product Specification
Field of Application Industrial
Floor Concrete / Tiled / Resin
Material AISI 304
Material (EN) EN 1.4301
Maximum Height (mm) 197
Membrane Type Liquid Membrane
Minimum Height (mm) 179
Outlet dia. (mm) 160
Outlet Diameter (Inch) 6
Outlet Direction Vertical
Shape Rectangular
Size (mm) 400x600
Size of Frame (Inch) 16 x 24
Weight (kg) 13.04
Weight (lbs) 28.75
