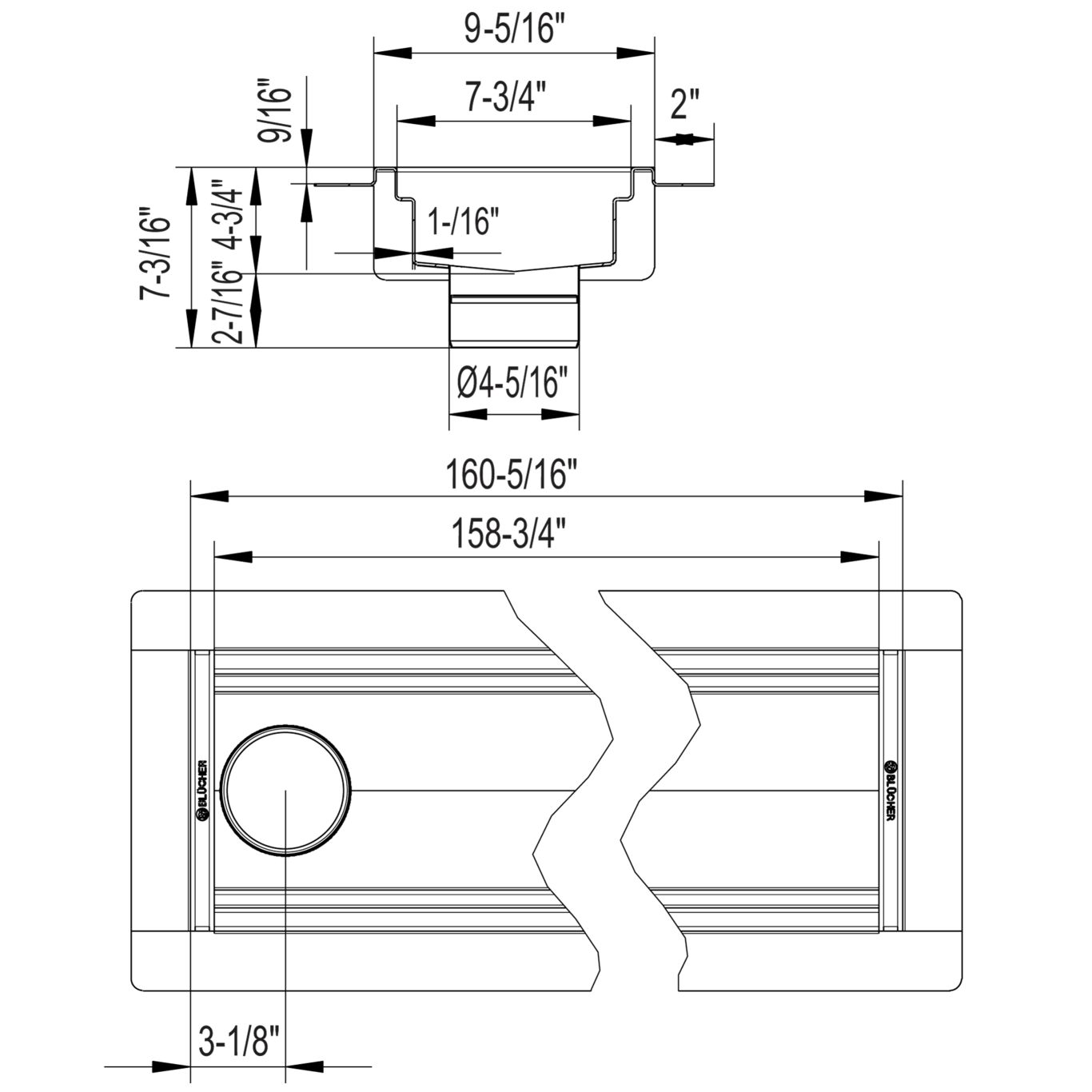

CHANNEL 200x4000 END OUTLET - (674DH040-00BA)
Part Of the Series: Channel-Liquid membrane
Type no.: 674DH040-00BA
EAN no.: 5705499131017
Size: 200x4000
CHANNEL 7-7/8 x 157-1/2 END OUTLET
-Floor: concrete, tiled and resin
-Liquid membrane
-Outlet: Ø4 inch, vertical
-Stainless steel: AISI304/EN1.4301
Product Specification | |
---|---|
Field of Application | Industrial |
Floor | Concrete / Tiled / Resin |
Material | AISI 304 |
Material (EN) | EN 1.4301 |
Membrane Type | Liquid Membrane |
Minimum Height (mm) | 182 |
Outlet Box | No |
Outlet dia. (mm) | 110 |
Outlet Diameter (Inch) | 4 |
Outlet Direction | Vertical |
Outlet Placement | End |
Shape | Rectangular |
Size (mm) | 200x4000 |
Size of Frame (Inch) | 7-7/8 x 157-1/2 |
Weight (kg) | 38 |
Weight (lbs) | 83.78 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
