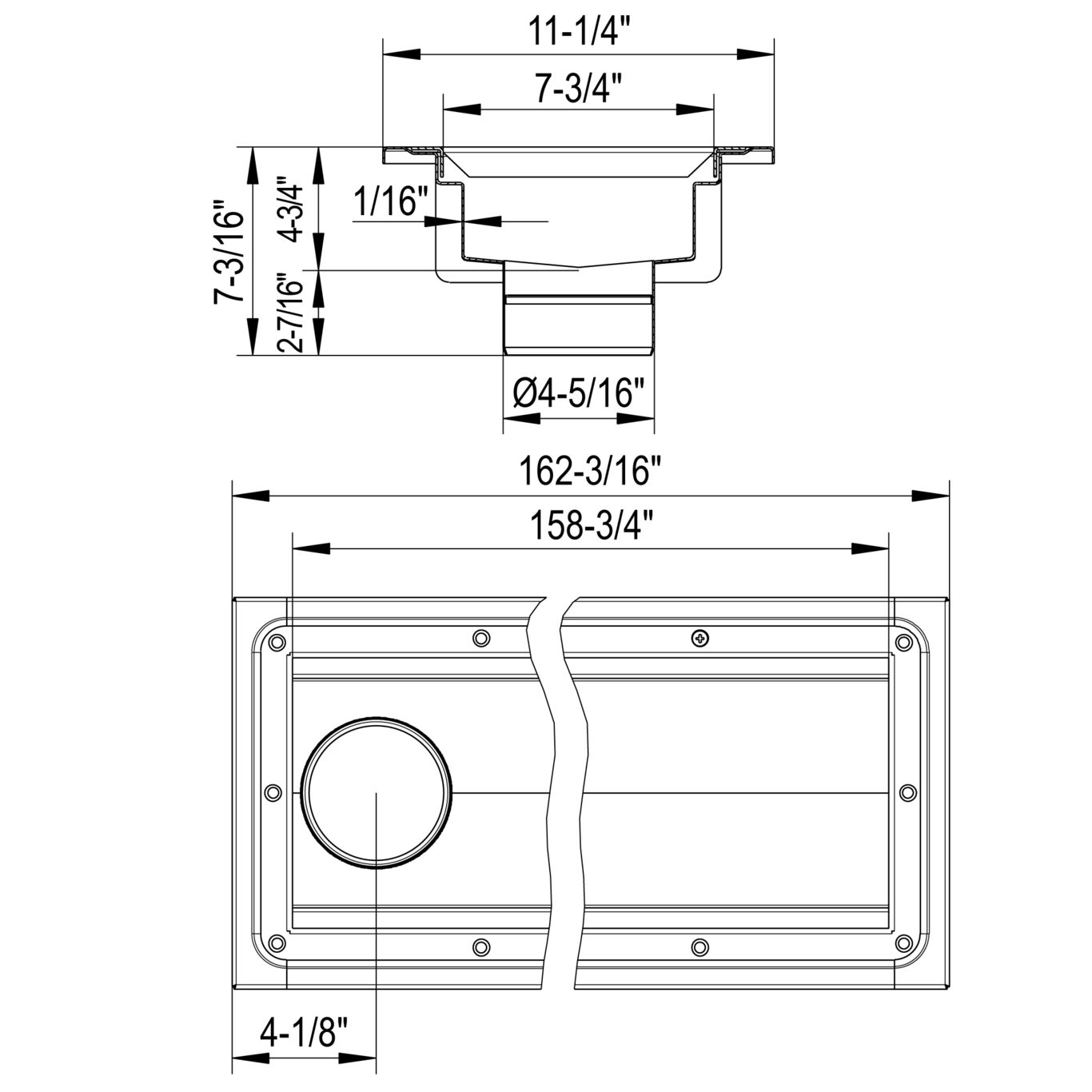

CHANNEL 200x4000 END OUTLET - (672DH040-00BA)
×
![]()
Part Of the Series: Channel-Vinyl
Type no.: 672DH040-00BA
EAN no.: 5705499130324
Size: 200x4000
CHANNEL 7-7/8 x 157-1/2 END OUTLET
-Floor: vinyl
-Outlet: Ø4 inch, vertical
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Industrial |
| Floor | Vinyl |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 182 |
| Outlet Box | No |
| Outlet dia. (mm) | 110 |
| Outlet Diameter (Inch) | 4 |
| Outlet Direction | Vertical |
| Outlet Placement | End |
| Shape | Rectangular |
| Size (mm) | 200x4000 |
| Size of Frame (Inch) | 7-7/8 x 157-1/2 |
| Weight (kg) | 30.11 |
| Weight (lbs) | 66.38 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
