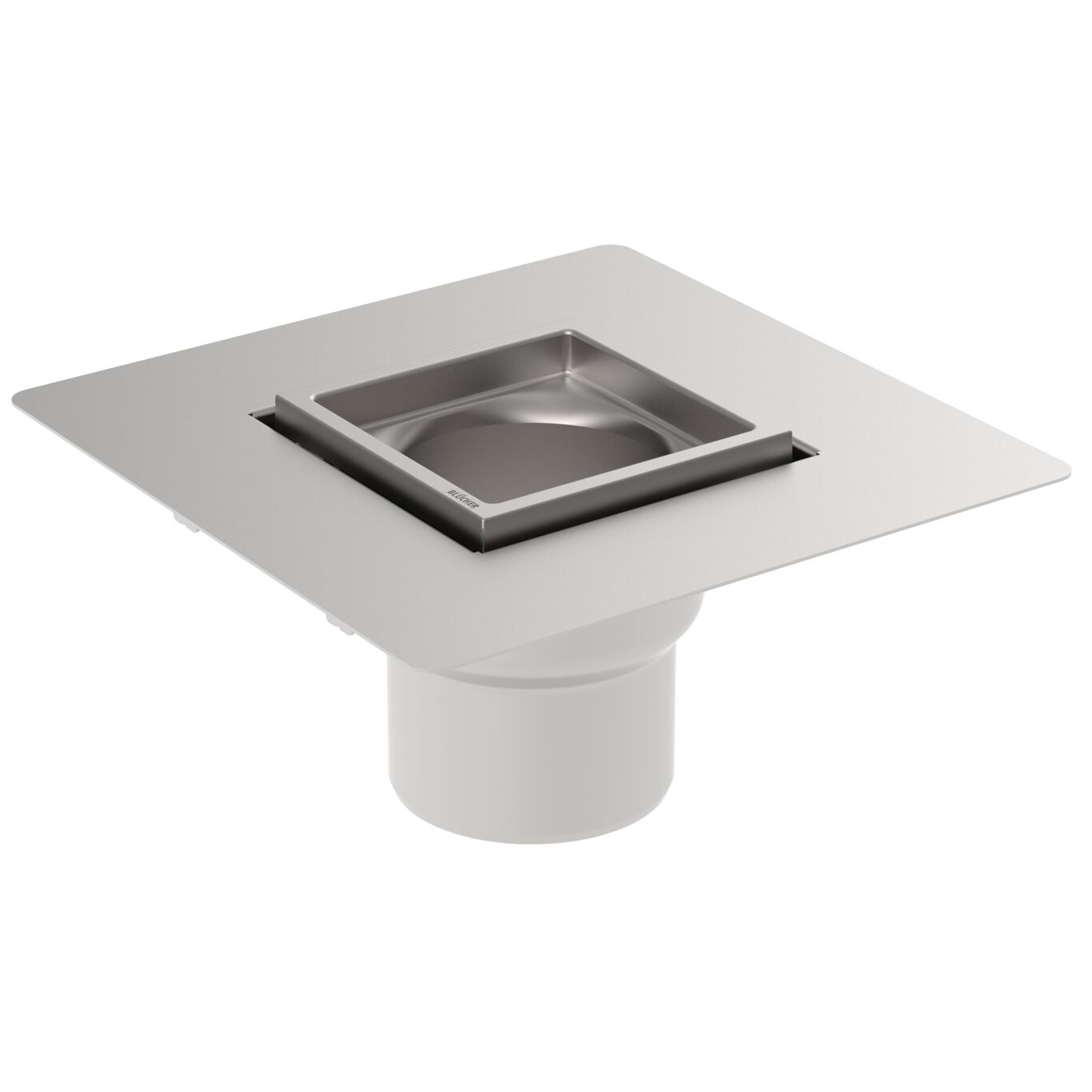

KITCHEN CHANNEL 200x200 - (668DK002-00)
×
![]()
Part Of the Series: Kitchen channel-Liquid membrane-max300
Type no.: 668DK002-00
EAN no.: 5705499134698
RSK no.: 7122969
LVI no.: 3304156
Size: 200x200
KITCHEN CHANNEL 8 x 8
-Adjustable
-Floor: concrete, tiled and resin
-Outlet: Ø6 inch, vertical
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Industrial |
| Floor | Concrete / Tiled / Resin |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Maximum Height (mm) | 245 |
| Membrane Type | Liquid Membrane |
| Minimum Height (mm) | 227 |
| Outlet dia. (mm) | 160 |
| Outlet Diameter (Inch) | 6 |
| Outlet Direction | Vertical |
| Shape | Square |
| Size (mm) | 200x200 |
| Size of Frame (Inch) | 8 x 8 |
| Weight (kg) | 5.36 |
| Weight (lbs) | 11.82 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
