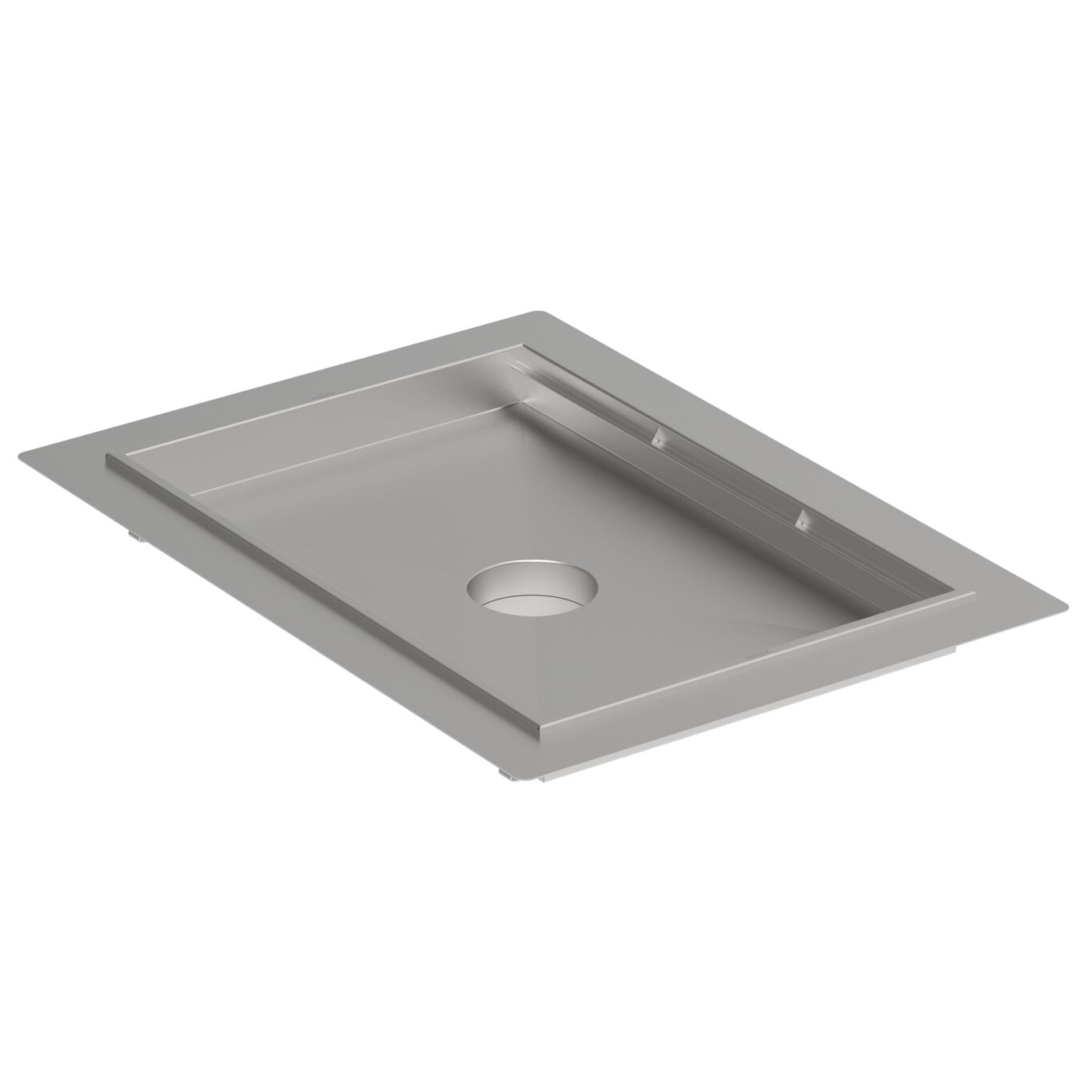

KITCHEN CHANNEL 600x900 - (668HK009-11)
×
![]()
Part Of the Series: Kitchen channel-Liquid membrane
Type no.: 668HK009-11
EAN no.: 5705499135206
RSK no.: 7121820
LVI no.: 3304931
Size: 600x900
KITCHEN CHANNEL 24 x 36
-Adjustable
-Floor: concrete, tiled and resin
-Outlet: Ø6 inch, vertical
-Stainless steel: AISI304/EN1.4301

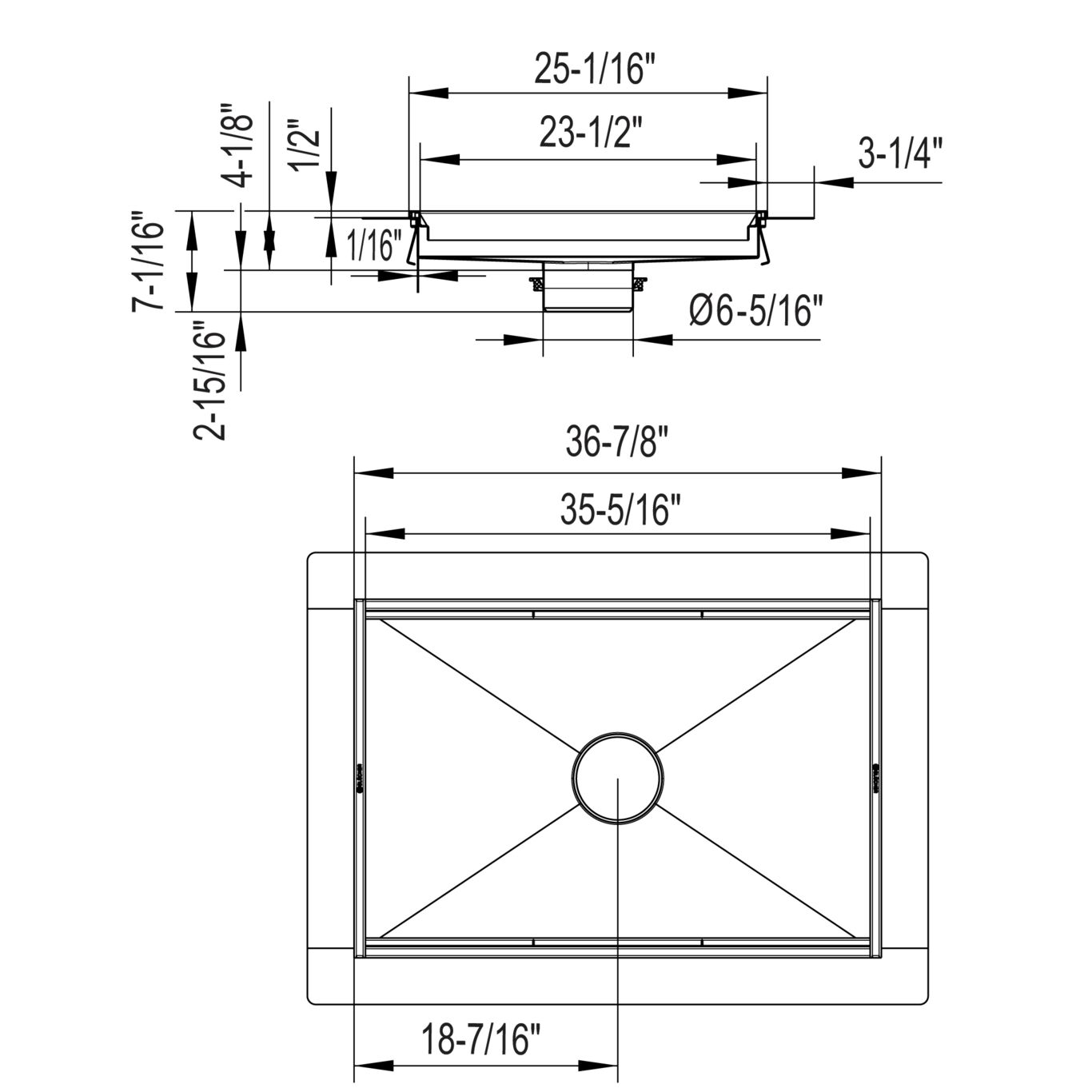

| Product Specification | |
|---|---|
| Field of Application | Industrial |
| Floor | Concrete / Tiled / Resin |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Maximum Height (mm) | 197 |
| Membrane Type | Liquid Membrane |
| Minimum Height (mm) | 179 |
| Outlet dia. (mm) | 160 |
| Outlet Diameter (Inch) | 6 |
| Outlet Direction | Vertical |
| Shape | Rectangular |
| Size (mm) | 600x900 |
| Size of Frame (Inch) | 24 x 36 |
| Weight (kg) | 21.78 |
| Weight (lbs) | 48.02 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
