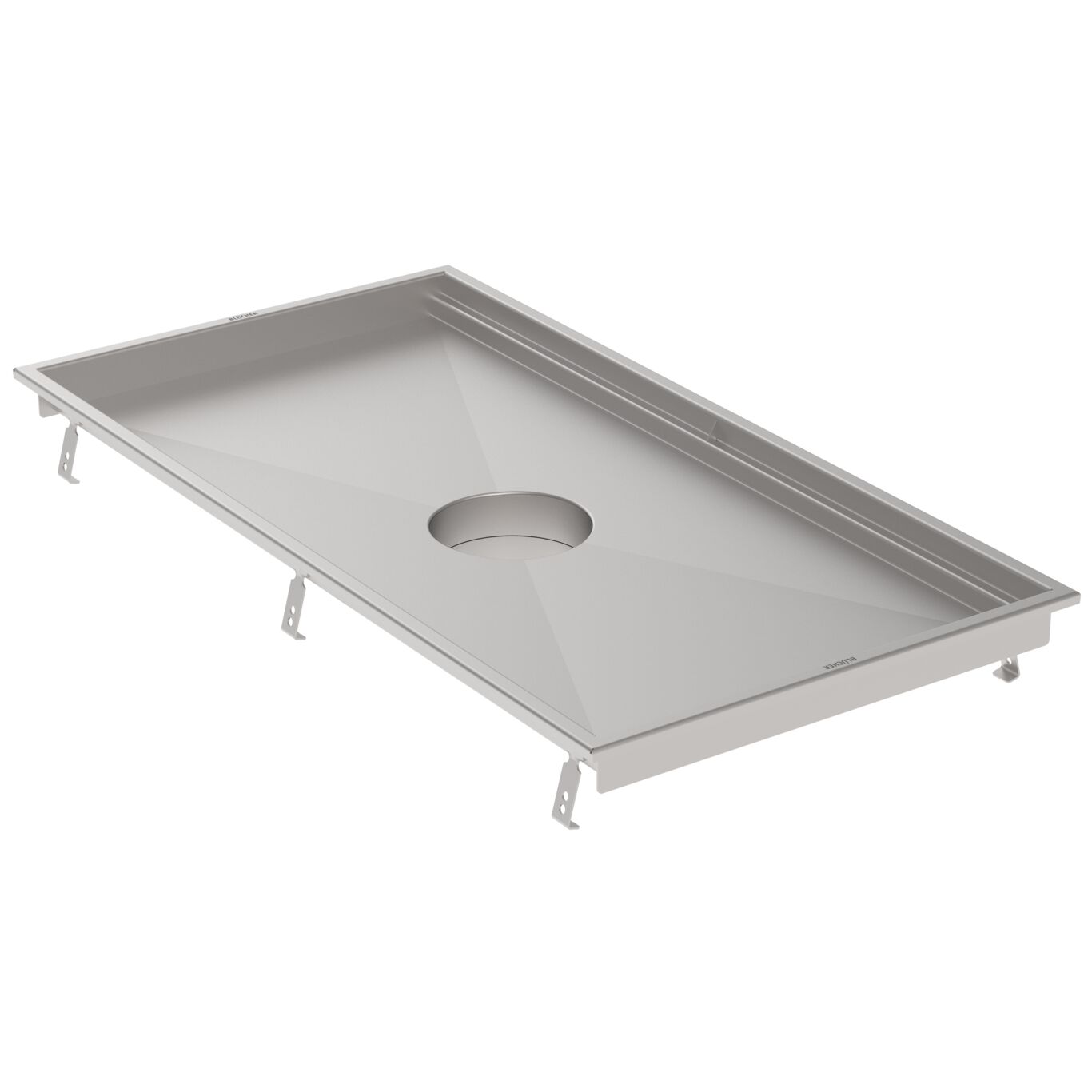

KITCHEN CHANNEL 500x1000 - (660GK010-06)
×
![]()
Part Of the Series: Kitchen channel-No membrane
Type no.: 660GK010-06
EAN no.: 5705499126372
Size: 500x1000
KITCHEN CHANNEL 20 x 40
-Floor: concrete, tiled and resin
-No membrane
-Outlet: Ø6 inch, vertical
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Industrial |
| Floor | Concrete / Tiled / Resin |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Membrane Type | No Membrane |
| Minimum Height (mm) | 145 |
| Outlet dia. (mm) | 160 |
| Outlet Diameter (Inch) | 6 |
| Outlet Direction | Vertical |
| Shape | Rectangular |
| Size (mm) | 500x1000 |
| Size of Frame (Inch) | 20 x 40 |
| Weight (kg) | 12.03 |
| Weight (lbs) | 26.52 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
