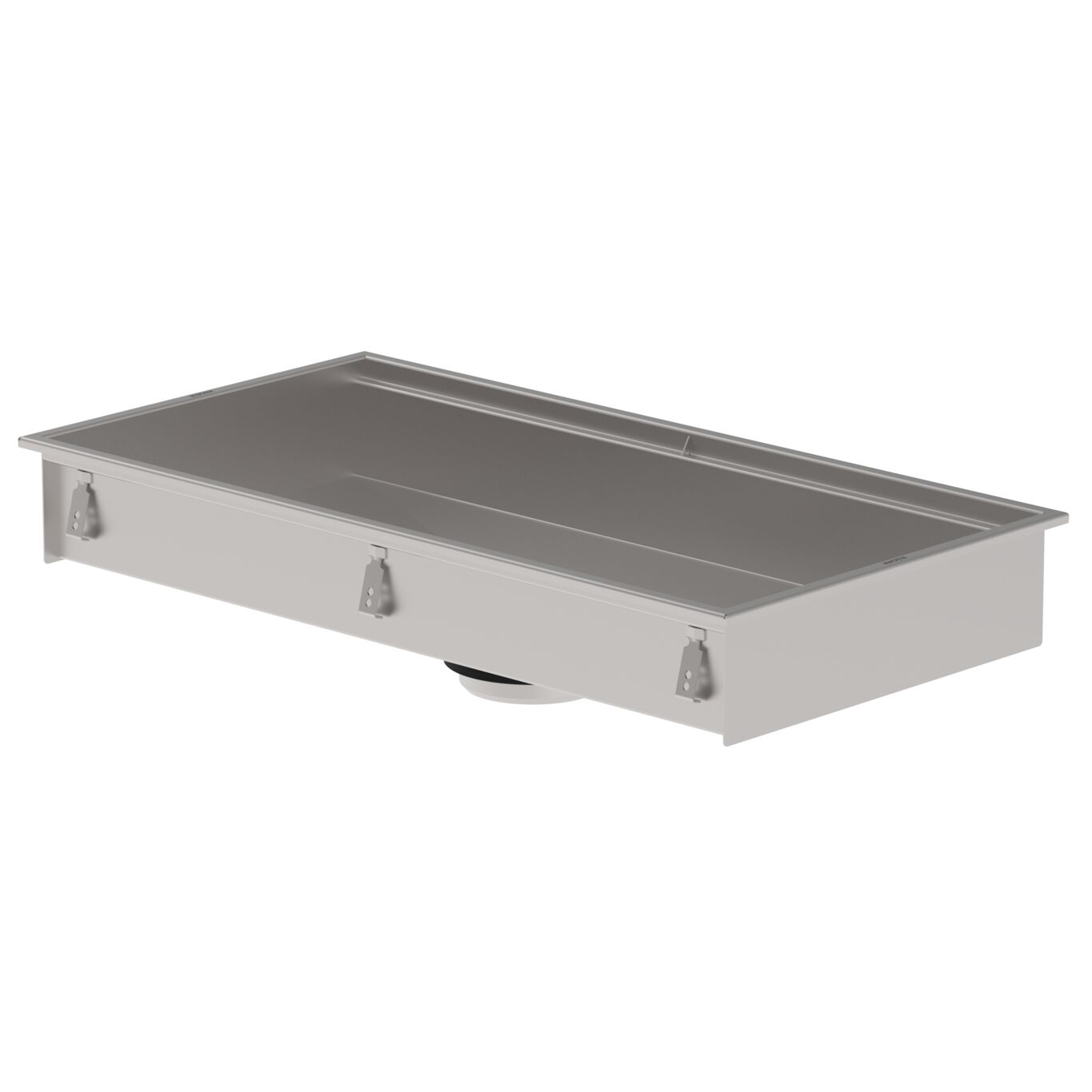

KITCHEN CHANNEL 500x1000 - (660GK010-15)

Part Of the Series: Kitchen channel-No membrane

Type no.: 660GK010-15

EAN no.: 5705499126396

Size: 500x1000

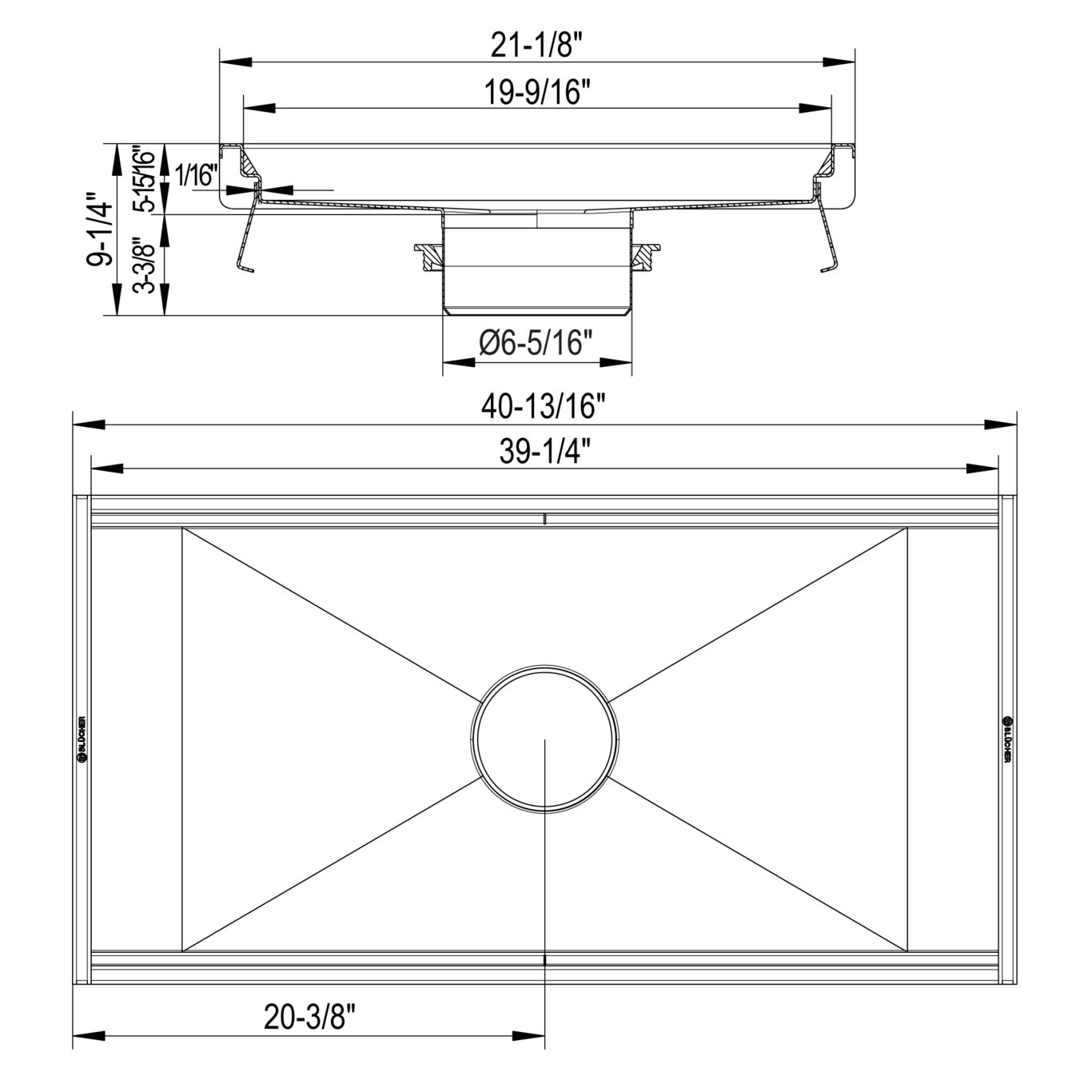

Download CAD Collections

2d DWG files

3d STP files



Download MasterSpec Documents

MasterSpec

Product Specification
Field of Application Industrial
Floor Concrete / Tiled / Resin
Material AISI 304
Material (EN) EN 1.4301
Membrane Type No Membrane
Minimum Height (mm) 235
Outlet dia. (mm) 160
Outlet Diameter (Inch) 6
Outlet Direction Vertical
Shape Rectangular
Size (mm) 500x1000
Size of Frame (Inch) 20 x 40
Weight (kg) 16.39
Weight (lbs) 36.13
