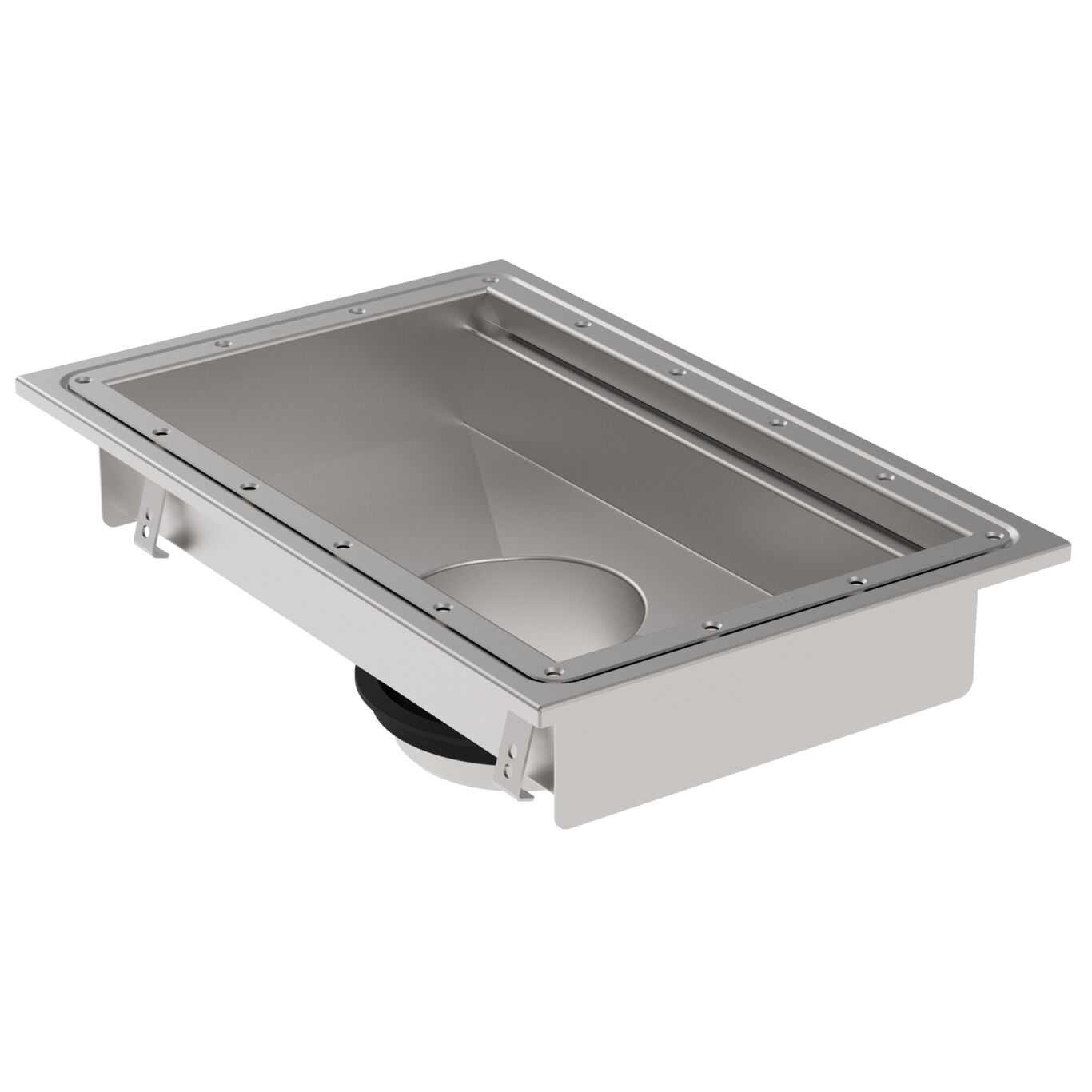

KITCHEN CHANNEL 300X500 - (662EK005-11)
×
![]()
Part Of the Series: Kitchen channel-Vinyl
Type no.: 662EK005-11
EAN no.: 5705499134759
RSK no.: 7122962
Size: 300x500
KITCHEN CHANNEL 12 x 20
-Floor: vinyl
-Outlet: Ø6 inch, vertical
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Industrial |
| Floor | Vinyl |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 195 |
| Outlet dia. (mm) | 160 |
| Outlet Diameter (Inch) | 6 |
| Outlet Direction | Vertical |
| Shape | Rectangular |
| Size (mm) | 300x500 |
| Size of Frame (Inch) | 12 x 20 |
| Weight (kg) | 6.26 |
| Weight (lbs) | 13.8 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
