CHANNEL 300x1000 CENTER OUTLET - (674EK010-05BA)
×
Part Of the Series: Channel-Liquid membrane
Type no.: 674EK010-05BA
EAN no.: 5705499131239
NRF no.: 3396472
Size: 300x1000

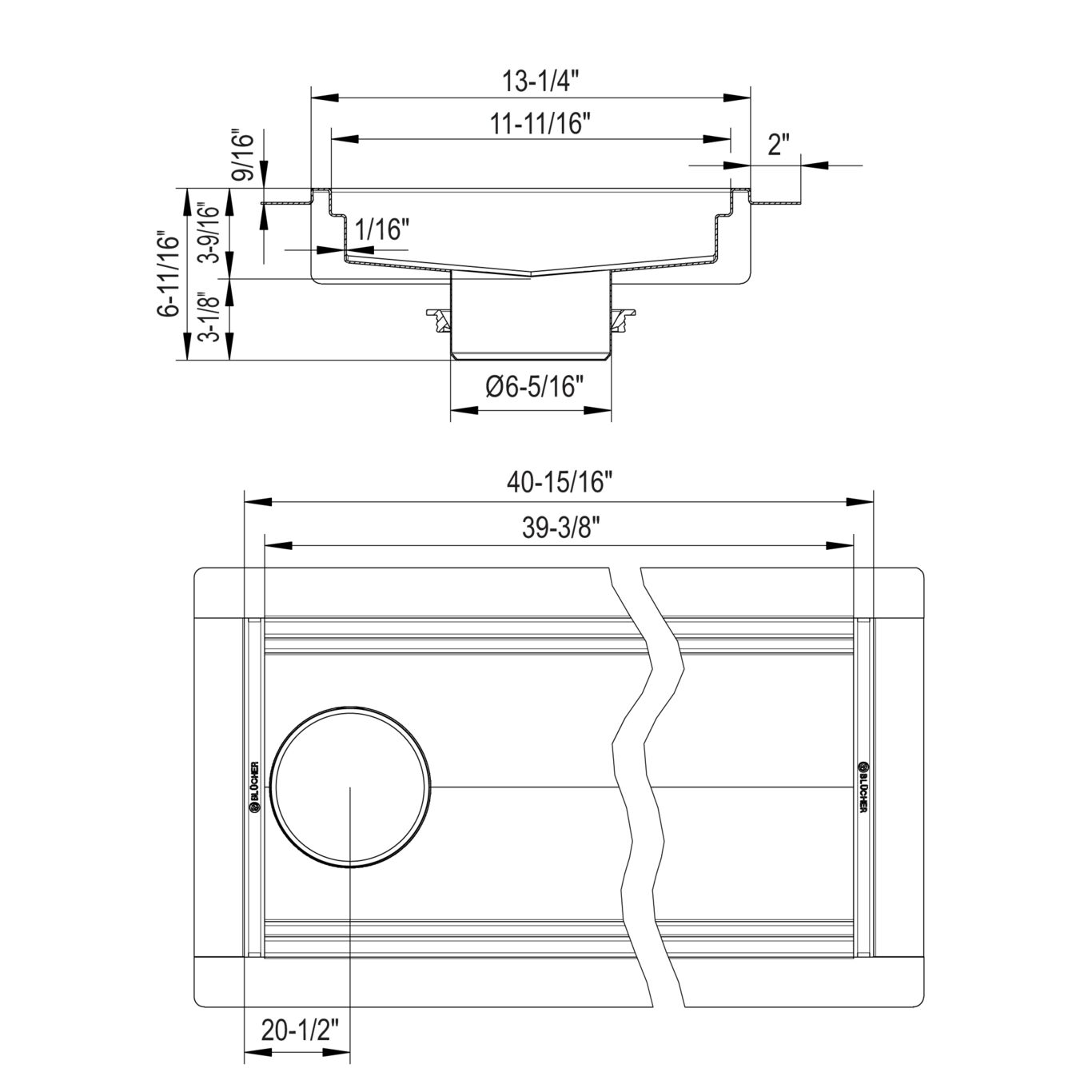

CHANNEL 11-3/4 x 39-3/8 CENTER OUTLET
-Floor: concrete, tiled and resin
-Liquid membrane
-Outlet: Ø6 inch, vertical
-Stainless steel: AISI304/EN1.4301
Product Specification | |
---|---|
Field of Application | Industrial |
Floor | Concrete / Tiled / Resin |
Material | AISI 304 |
Material (EN) | EN 1.4301 |
Membrane Type | Liquid Membrane |
Minimum Height (mm) | 170 |
Outlet Box | No |
Outlet dia. (mm) | 160 |
Outlet Diameter (Inch) | 6 |
Outlet Direction | Vertical |
Outlet Placement | Center |
Shape | Rectangular |
Size (mm) | 300x1000 |
Size of Frame (Inch) | 11-3/4 x 39-3/8 |
Weight (kg) | 11.82 |
Weight (lbs) | 26.06 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
