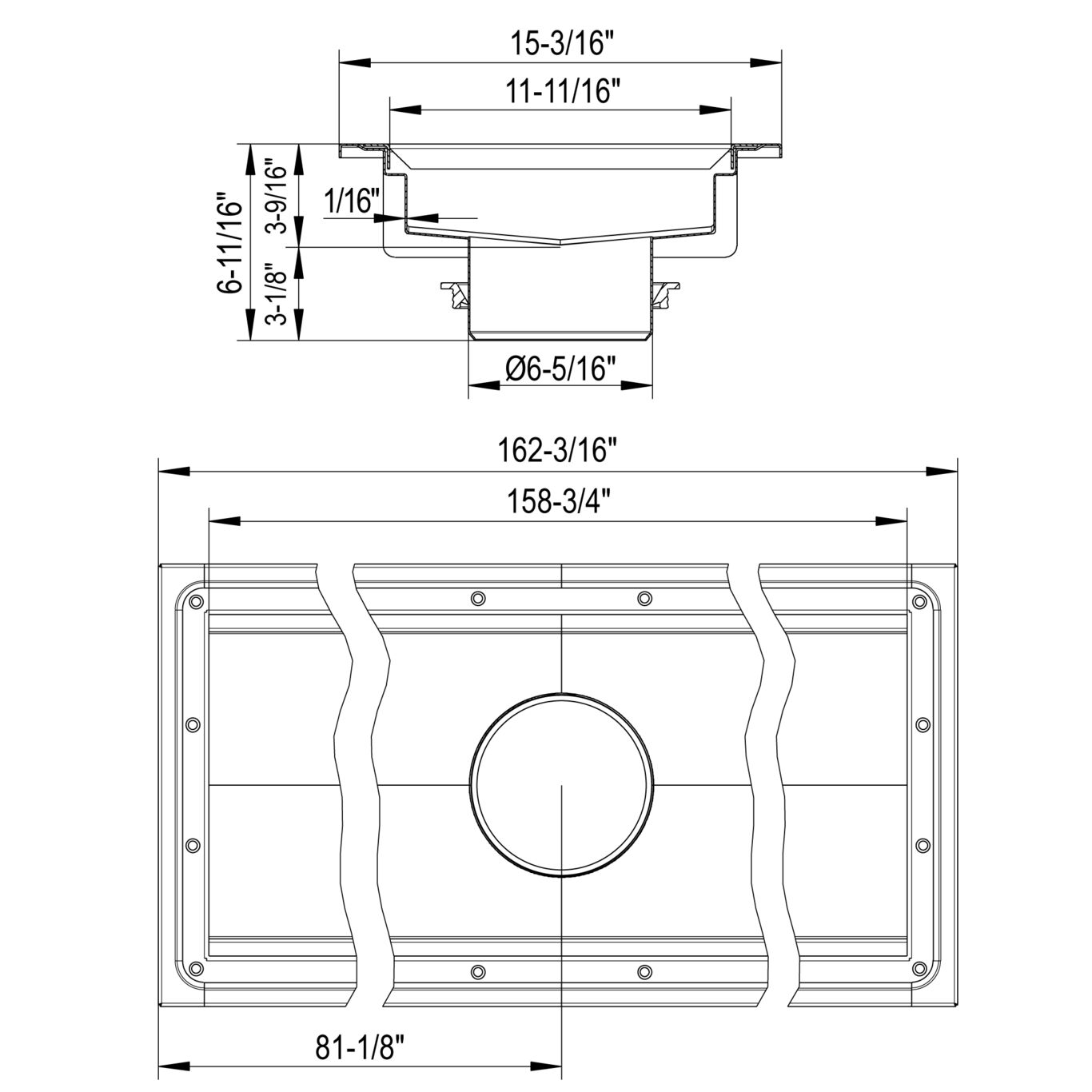

CHANNEL 300x4000 CENTER OUTLET - (672EK040-20BA)
×
Part Of the Series: Channel-Vinyl
Type no.: 672EK040-20BA
EAN no.: 5705499130546
Size: 300x4000
CHANNEL 11-3/4 x 157-1/2 CENTER OUTLET
-Floor: vinyl
-Outlet: Ø6 inch, vertical
-Stainless steel: AISI304/EN1.4301
Product Specification | |
---|---|
Field of Application | Industrial |
Floor | Vinyl |
Material | AISI 304 |
Material (EN) | EN 1.4301 |
Minimum Height (mm) | 170 |
Outlet Box | No |
Outlet dia. (mm) | 160 |
Outlet Diameter (Inch) | 6 |
Outlet Direction | Vertical |
Outlet Placement | Center |
Shape | Rectangular |
Size (mm) | 300x4000 |
Size of Frame (Inch) | 11-3/4 x 157-1/2 |
Weight (kg) | 33.71 |
Weight (lbs) | 74.32 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
