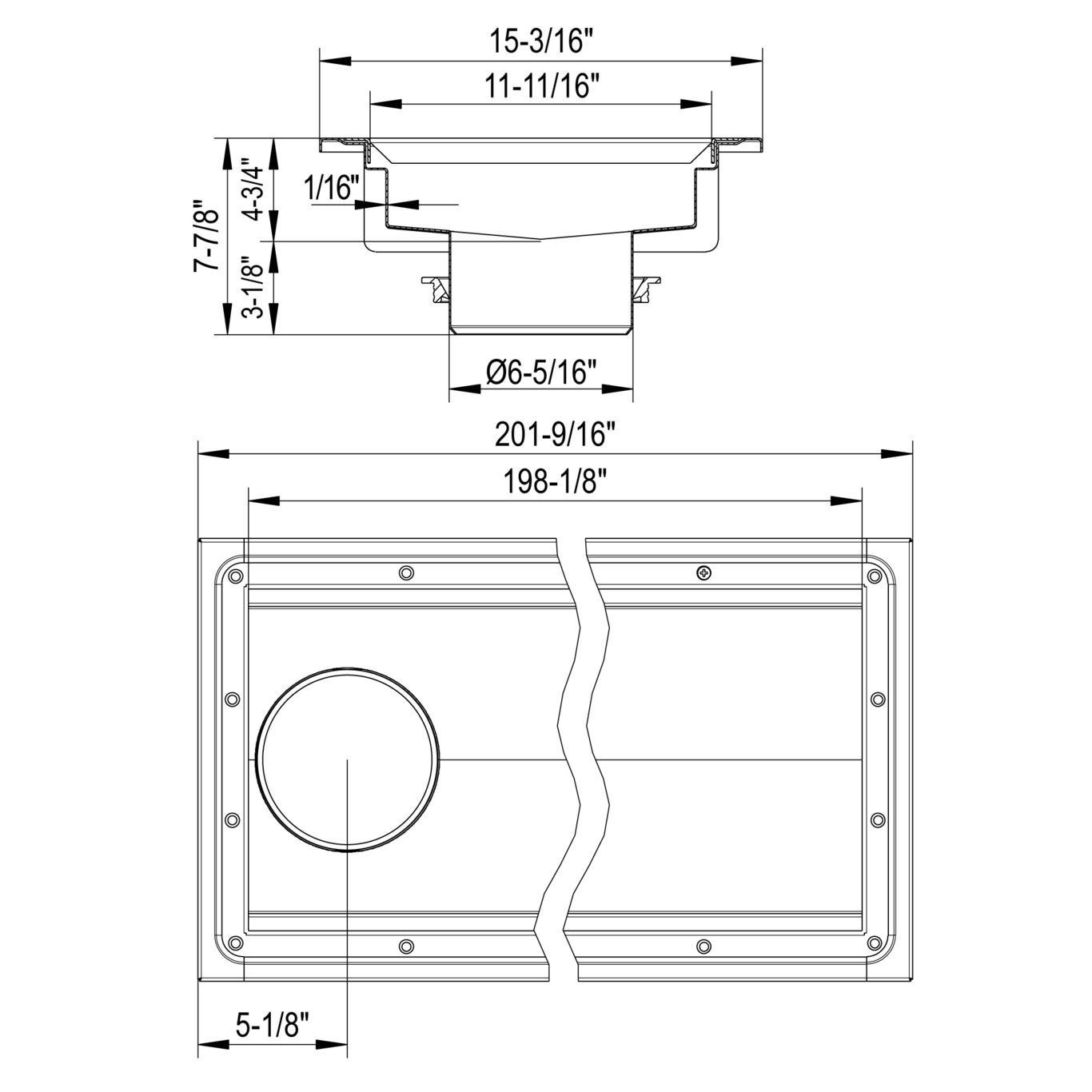

CHANNEL 300x5000 END OUTLET - (672EK050-00BA)
×
![]()
Part Of the Series: Channel-Vinyl
Type no.: 672EK050-00BA
EAN no.: 5705499130553
Size: 300x5000
CHANNEL 11-3/4 x 196-7/8 END OUTLET
-Floor: vinyl
-Outlet: Ø6 inch, vertical
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Industrial |
| Floor | Vinyl |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 200 |
| Outlet Box | No |
| Outlet dia. (mm) | 160 |
| Outlet Diameter (Inch) | 6 |
| Outlet Direction | Vertical |
| Outlet Placement | End |
| Shape | Rectangular |
| Size (mm) | 300x5000 |
| Size of Frame (Inch) | 11-3/4 x 196-7/8 |
| Weight (kg) | 43.18 |
| Weight (lbs) | 95.2 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
