SLOT CHANNEL 20x3000 CENTER OUTLET - (673AK030-15BA)
×
![]()
Part Of the Series: Slot channel-No membrane
Type no.: 673AK030-15BA
EAN no.: 5705499125856

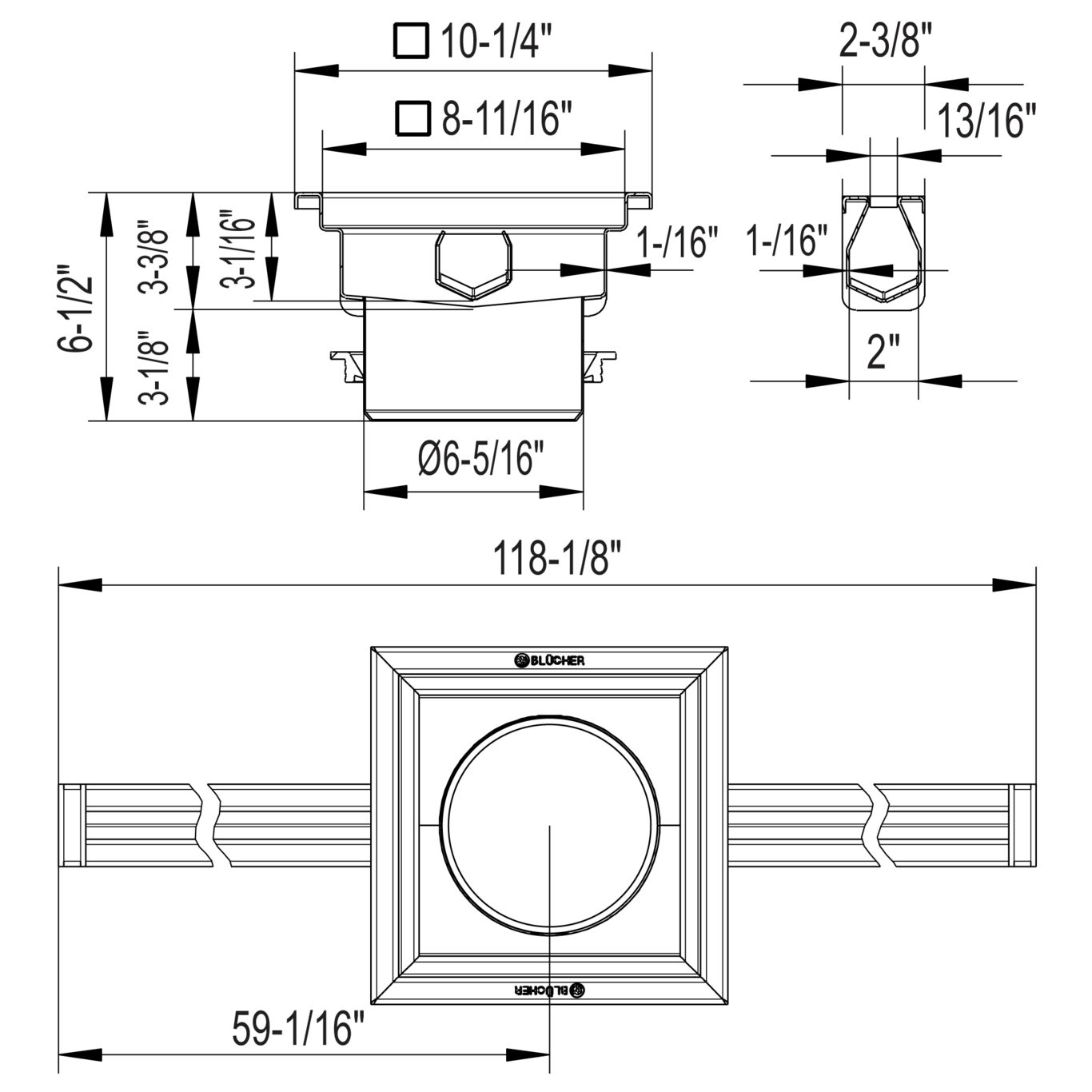

Size: 20x3000
SLOT CHANNEL 3/4 x 118-1/8 CENTER OUTLET
-With outlet box
-Floor: concrete, tiled and resin
-No membrane
-Outlet: Ø6 inch, vertical
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Industrial |
| Floor | Concrete / Tiled / Resin |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Membrane Type | No Membrane |
| Minimum Height (mm) | 165 |
| Outlet Box | Yes |
| Outlet dia. (mm) | 160 |
| Outlet Diameter (Inch) | 6 |
| Outlet Direction | Vertical |
| Outlet Placement | Center |
| Shape | Rectangular |
| Size (mm) | 20x3000 |
| Size of Frame (Inch) | 3/4 x 118-1/8 |
| Weight (kg) | 25 |
| Weight (lbs) | 55.12 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
