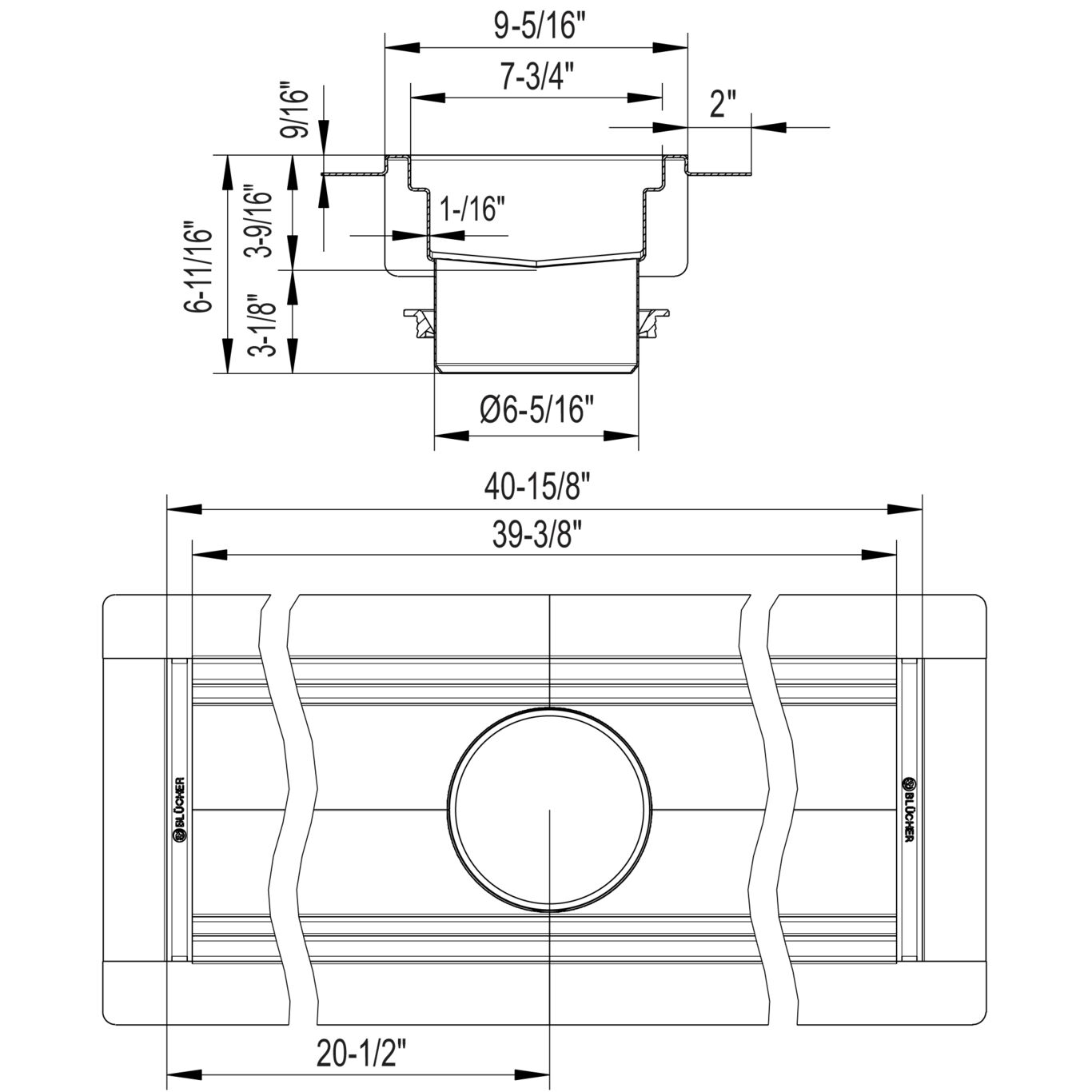

CHANNEL 200x1000 CENTER OUTLET - (674DK010-05BA)

Part Of the Series: Channel-Liquid membrane

Type no.: 674DK010-05BA

EAN no.: 5705499131093

NRF no.: 3396469

Size: 200x1000


Download CAD Collections

2d DWG files

3d STP files



Download MasterSpec Documents

MasterSpec

Product Specification
Field of Application Industrial
Floor Concrete / Tiled / Resin
Material AISI 304
Material (EN) EN 1.4301
Membrane Type Liquid Membrane
Minimum Height (mm) 170
Outlet Box No
Outlet dia. (mm) 160
Outlet Diameter (Inch) 6
Outlet Direction Vertical
Outlet Placement Center
Shape Rectangular
Size (mm) 200x1000
Size of Frame (Inch) 7-7/8 x 39-3/8
Weight (kg) 12.5
Weight (lbs) 27.56
