CHANNEL 200x6000 END OUTLET - (670DK060-00BA)
×
![]()
Part Of the Series: Channel-No membrane
Type no.: 670DK060-00BA
EAN no.: 5705499129748
NRF no.: 3394835
LVI no.: 3304808

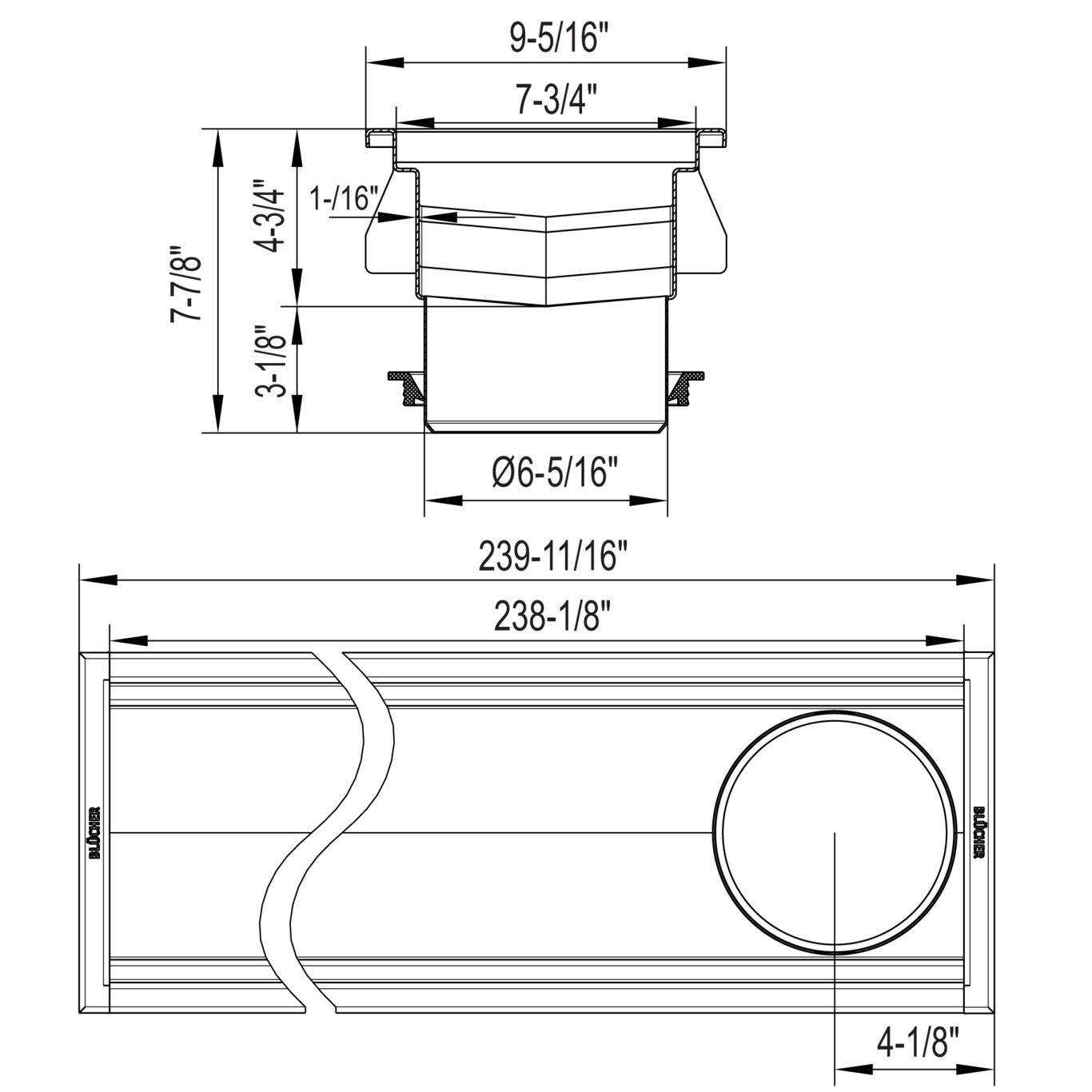

Size: 200x6000
CHANNEL 7-7/8 x 236-1/4 END OUTLET
-Floor: concrete, tiled and resin
-No membrane
-Outlet: Ø6 inch, vertical
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Industrial |
| Floor | Concrete / Tiled / Resin |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Membrane Type | No Membrane |
| Minimum Height (mm) | 200 |
| Outlet Box | No |
| Outlet dia. (mm) | 160 |
| Outlet Diameter (Inch) | 6 |
| Outlet Direction | Vertical |
| Outlet Placement | End |
| Shape | Rectangular |
| Size (mm) | 200x6000 |
| Size of Frame (Inch) | 7-7/8 x 236-1/4 |
| Weight (kg) | 41.67 |
| Weight (lbs) | 91.87 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
