LOWER PART MULTI, LOW - (383.200.050 V)
×
![]()
Part Of the Series: MULTI lower part
Type no.: 383.200.050 V
EAN no.: 5705499131796
VVS no.: 153348810
RSK no.: 7119422
NRF no.: 3394336
LVI no.: 3303873

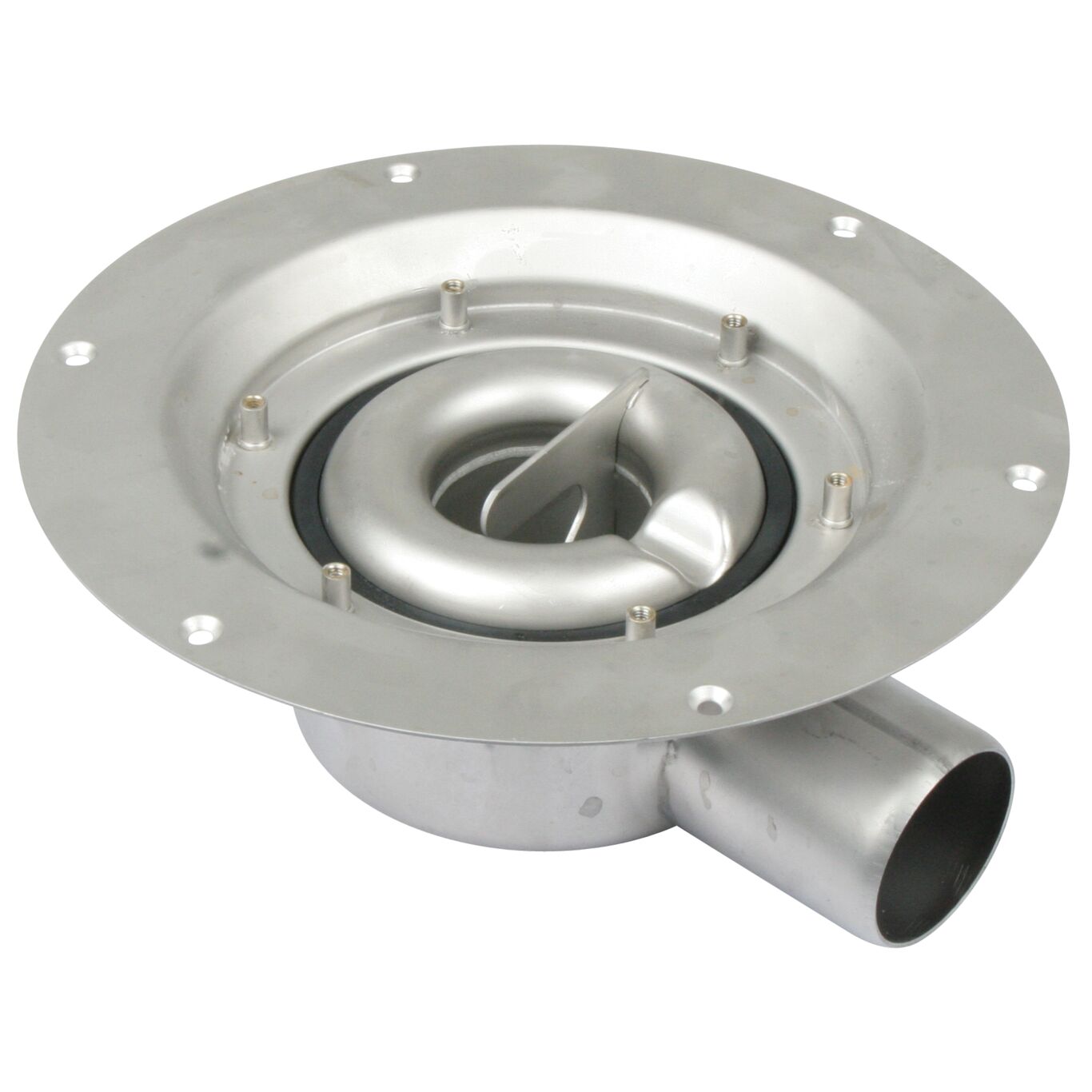

LOWER PART MULTI, LOW
-With removable water trap
-Outlet: Ø2 inch, horizontal
-Stainless steel: AISI304/EN1.4301

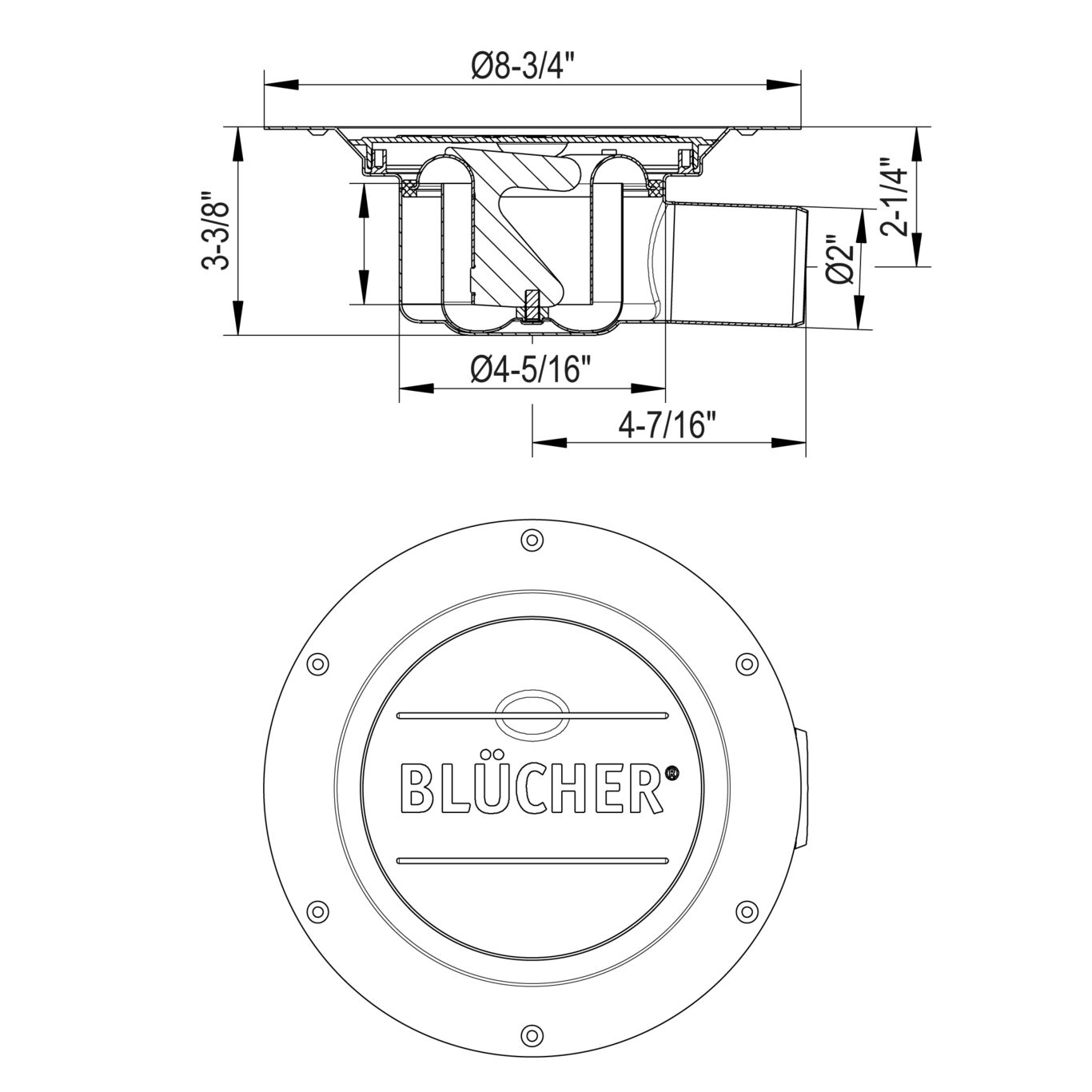

| Product Specification | |
|---|---|
| Field of Application | Domestic |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 86 |
| Number of Inlets | 0 |
| Outlet dia. (mm) | 50 |
| Outlet Diameter (Inch) | 2 |
| Outlet Direction | Horizontal |
| Water Seal Height (mm) | 50 |
| Weight (kg) | 0.9 |
| Weight (lbs) | 1.98 |
-
Approval Information
For approval information, please refer to the below approval certificates.
